19mm Sparrow Netting Kit Complete For Steelwork 10m x 10m
- Save 15% on individual product prices. No drilling required.
- Kit is available in four flange thickness size ranges, 2-4mm, 5-9mm, 10-16mm & 17-20mm
- Kit comes complete with everything needed for the installation of a 10m x 10m 19mm mesh sparrow net secured to the flanges of either "I" or "C" structural steelwork.
- Includes a 10m x 10m sparrow net in your choice of colour, corner & intermediate fixings, perimeter & straining products all in galvanised steel, specialist tools & a detailed 10-step installation guide
- You will need to know the steelwork flange thickness prior to ordering to get the correct sized intermediate fixing
Specification
This kit is an excellent "no drill" method of fixing to steel beams and girders fast and securely using bolt-up clamps for the corner fixings and hammer-on sprung-steel beam clips for the intermediate fixings

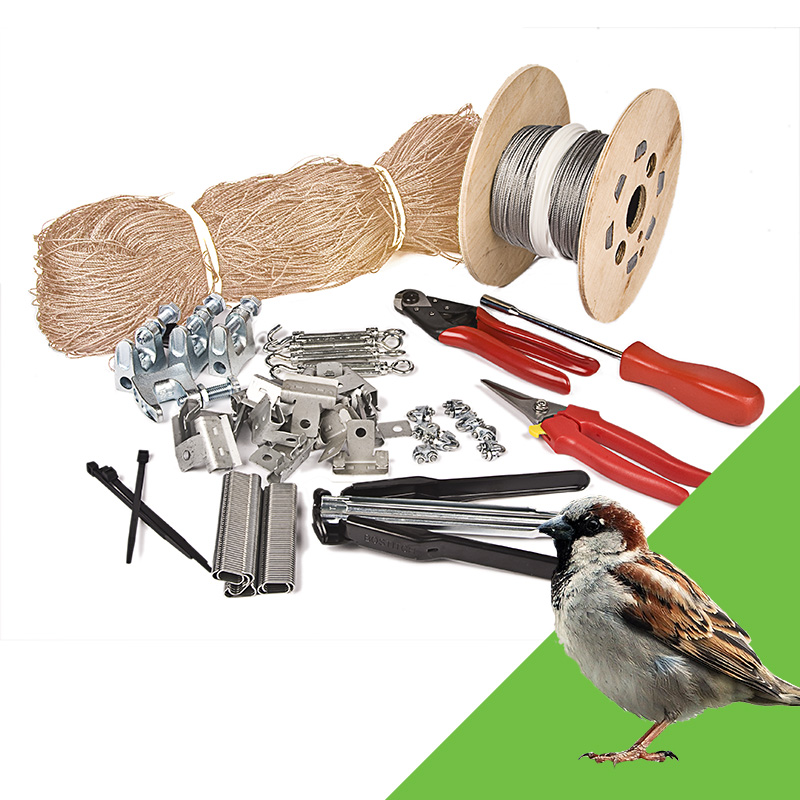

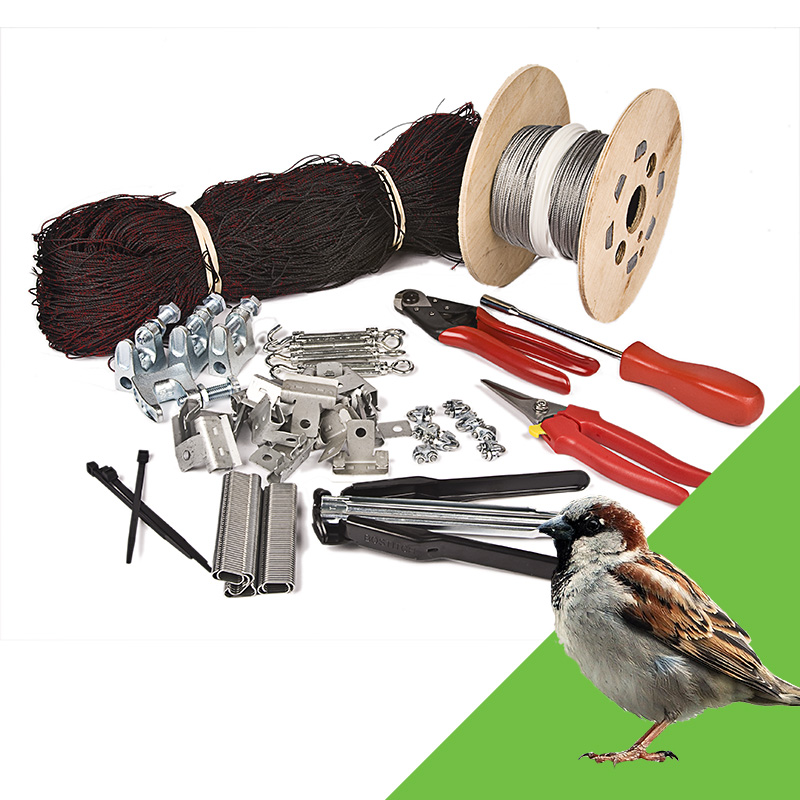

The kit contains:
- Detailed 10-step instruction guide
- Sparrow net, 19mm mesh - 10m x 10m in either black, stone, translucent or no flame X 1 (N19-10x10)
Fixings:
- 0-20mm Corner Beam Clamps in galvanised steel X 4 (NF159)
- Intermediate Beam Clip Fixings in chosen size range of 1-4mm, 5-9mm, 10-16mm, 17-20mm in galvanised steel X 136 (NF68, NF169, NF170 or NF171)
- Wire Rope 7/7 2mm diameter in galvanised steel 50M reel (NF222)
- M5 Barrel Strainers in galvanised steel (tensioning products) X 4 (NF142)
- Wire rope grips in galvanised steel X 16 (NF140)
- Hog ring staples (For fixing the net to the wire rope) in galvanised steel X 2200 (NF154)
- Netting Corner Ties X 4 (NF148)
Tools:
- Sprung Net Shears (For easy cutting of the Net) X 1 (NT125)
- Hog Ring Stapler Pliers P7 X 1 (NT122)
- Wire Rope Grip Nut Spinner (For tightening the wire rope grips) X 1 (NT121)
- Wire Rope Cutters for ease of trimming the wire rope X 1 (NT120)
Usage
Ideal for use on internal or external steel-framed structures, AHU roof pens, gantries, pipe racks, industrial roofs, basement garages, warehouse ceilings, loading bay canopies etc
Specialist corner clamps and intermediate clips make for fast easy and secure fixing methods for installing bird control netting effectively against a perimeter of structural steel girders without the need for drilling
