This kit is an excellent "no drill" method of fixing to steel beams and girders fast and securely using bolt-up clamps for the corner fixings and hammer-on sprung-steel beam clips for the intermediate fixings

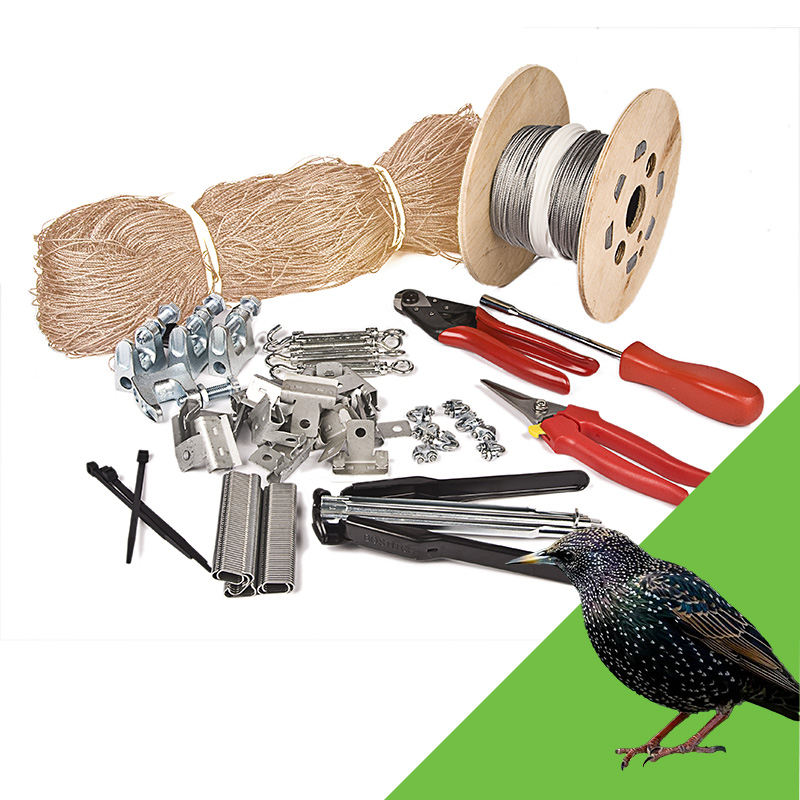

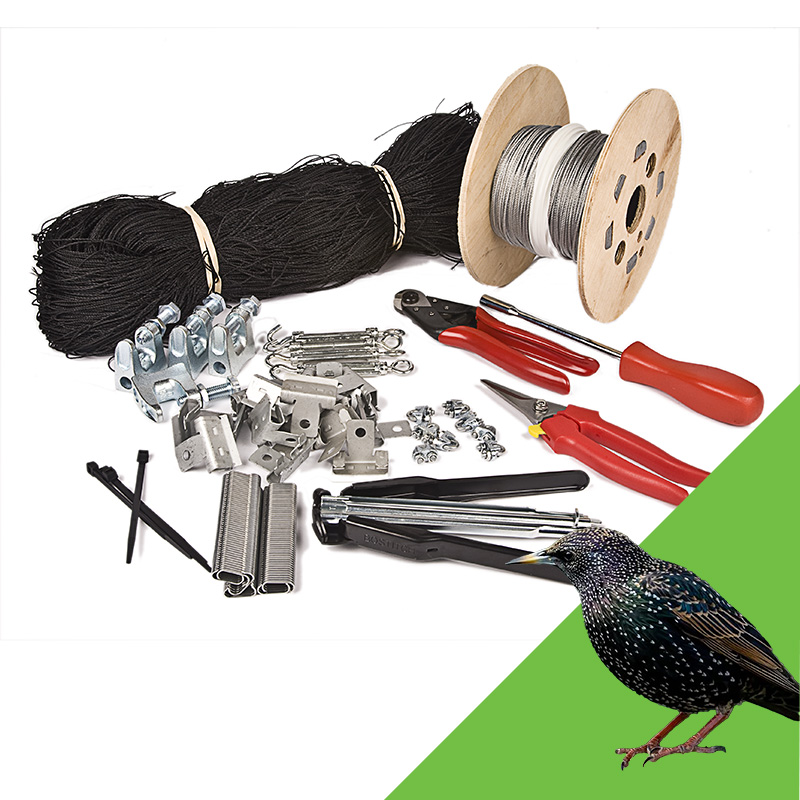

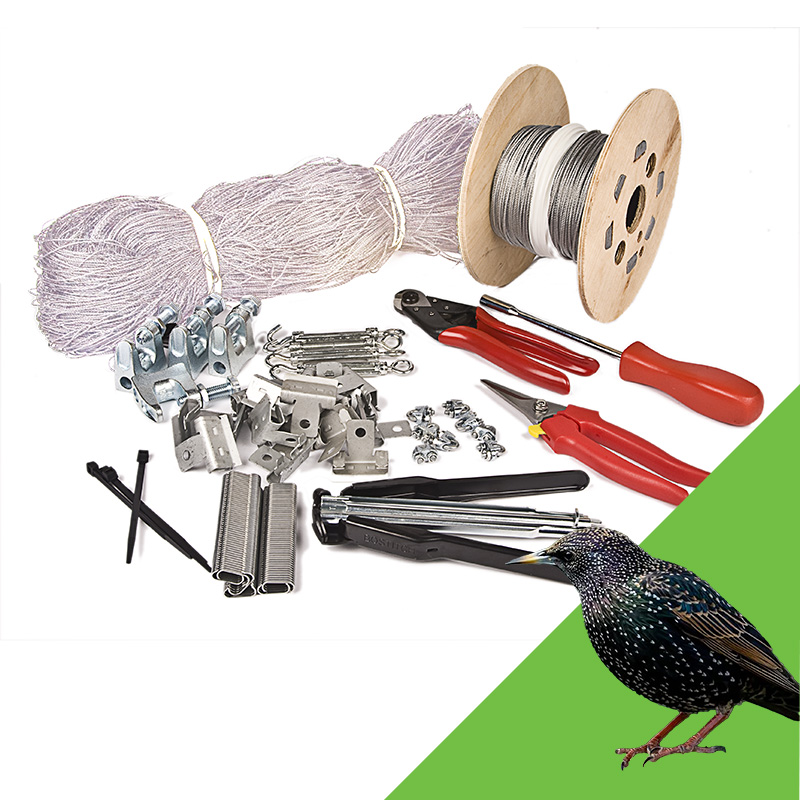

The kit contains:
- Detailed 10-step instruction guide
- Starling net, 28mm mesh - 10m x 10m in either black, stone, translucent or no flame X 1 (N28-10x10)
Fixings:
- Netting Repair Clips (NF259) keep these safe for future use in case of accidental cuts to the netting
- 0-20mm Corner Beam Clamps in galvanised steel X 4 (NF159)
- Intermediate Beam Clip Fixings in chosen size range of 1-4mm, 5-9mm, 10-16mm, 17-20mm in galvanised steel X 80 (NF68, NF169, NF170 or NF171)
- Wire Rope 7/7 2mm diameter in galvanised steel 50M reel (NF222)
- M5 Barrel Strainers in galvanised steel (tensioning products) X 4 (NF142)
- Wire rope grips in galvanised steel X 16 (NF140)
- Hog ring staples (For fixing the net to the wire rope) in galvanised steel X 1500 (NF154)
- Netting Corner Ties X 4 (NF148)
Tools:
- Sprung Net Shears (For easy cutting of the Net) X 1 (NT125)
- Hog Ring Stapler Pliers P7 X 1 (NT122)
- Wire Rope Grip Nut Spinner (For tightening the wire rope grips) X 1 (NT121)
- Wire Rope Cutters for ease of triming the wire rope X 1 (NT120)
Ideal for use on internal or external steel-framed structures, AHU roof pens, gantries, pipe racks, industrial roofs, basement garages, warehouse ceilings, loading bay canopies etc
Specialist corner clamps and intermediate clips make for fast easy and secure fixing methods for installing bird control netting effectively against a perimeter of structural steel girders without the need for drilling
