Kit is available in four flange thickness size ranges, 2-4mm, 5-9mm, 10-16mm & 17-20mm
- Kit comes complete with everything needed for the installation of a 10m x 10m 50mm mesh pigeon net secured to the flanges of either "I" or "C" structural steelwork.
- Includes 10m x 10m pigeon net in your choice of colour, corner & intermediate fixings, perimeter & straining products all in galvanised steel, specialist tools & a detailed 10-step installation guide.
- You will need to know the flange thickness prior to ordering to get the correct size intermediate fixings
This kit is an excellent "no drill" method of fixing pigeon control netting to steel beams and girders fast and securely using bolt-up clamps for the corner fixings and hammer-on sprung-steel beam clips for the intermediate fixings

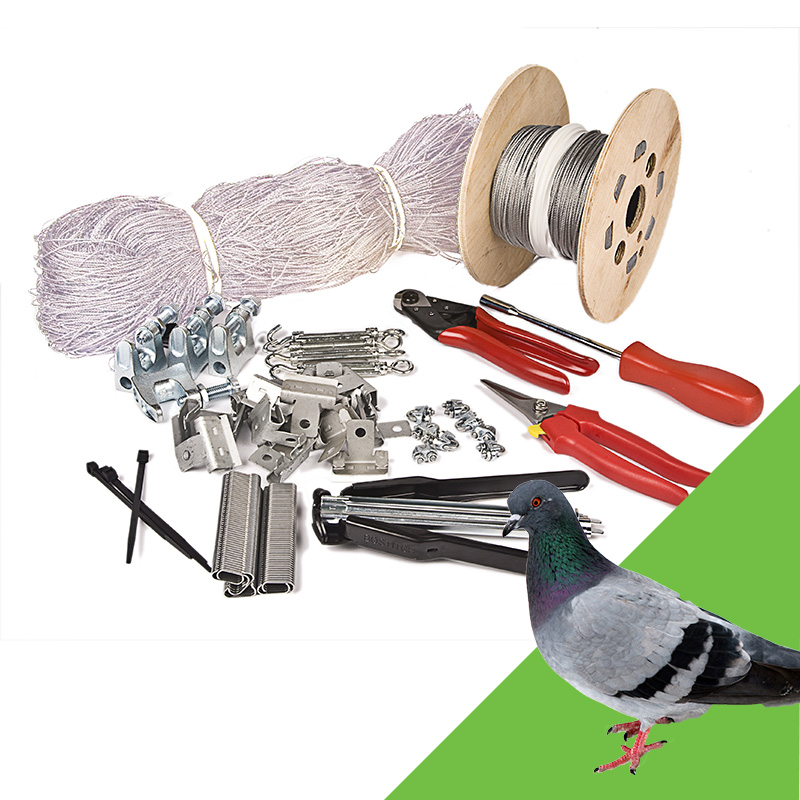

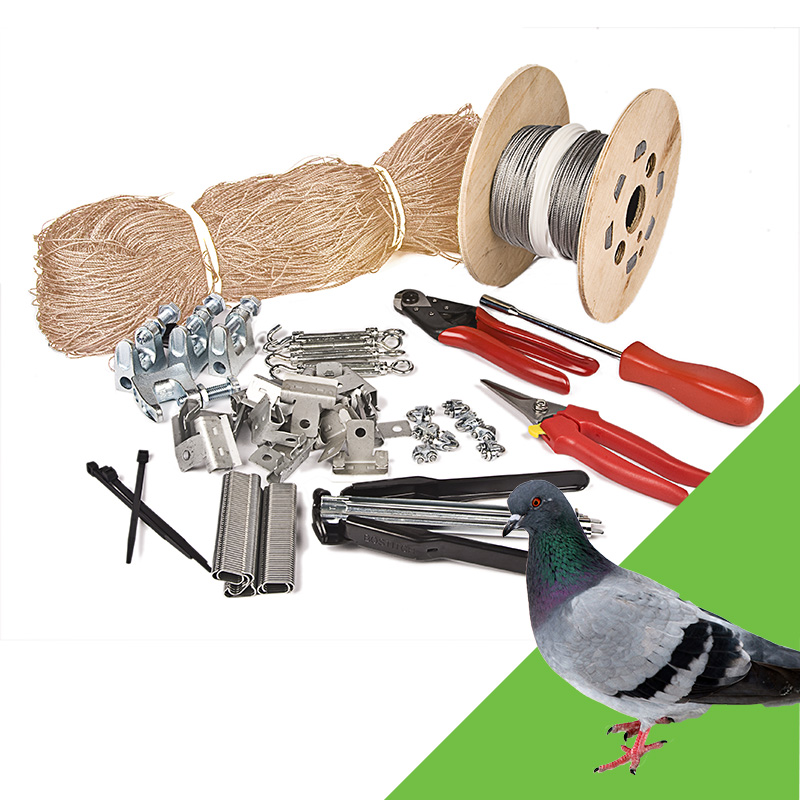

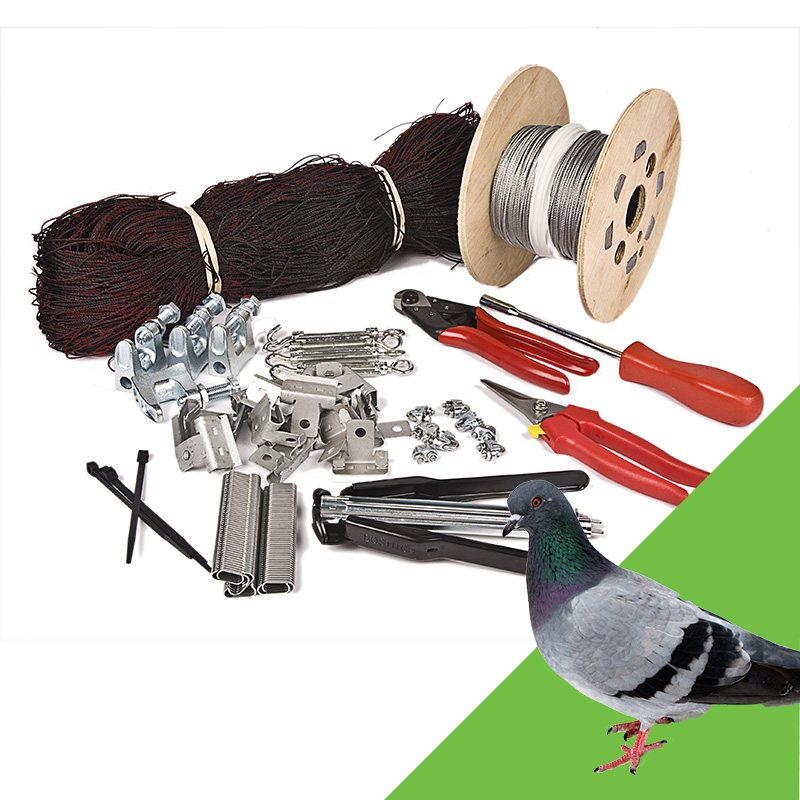

The kit contains:
- Detailed 10-step instruction guide
- Pigeon net, 50mm mesh - 10m x 10m in either black, stone, translucent or no flame X 1 (N50-10x10)
Fixings:
- Netting Repair Clips (NF259) keep these safe for future use in case of accidental cuts to the netting
- 0-20mm Corner Beam Clamps in galvanised steel X 4 (NF159)
- Intermediate Beam Clip Fixings in chosen size range of 1-4mm, 5-9mm, 10-16mm, 17-20mm in galvanised steel X 40 (NF68, NF169, NF170 or NF171)
- Wire Rope 7/7 2mm diameter in galvanised steel 50M reel (NF222)
- M5 Barrel Strainers in galvanised steel (tensioning products) X 4 (NF142)
- Wire rope grips in galvanised steel X 16 (NF140)
- Hog ring staples (For fixing the net to the wire rope) in galvanised steel X 800 (NF154)
- Netting Corner Ties X 4 (NF148)
Tools:
- Sprung Net Shears (For easy cutting of the Net) X 1 (NT125)
- Hog Ring Stapler (P7 Stanley Bostich) X 1 (NT122)
- Wire Rope Grip Nut Spinner (For tightening the wire rope grips) X 1 (NT121)
- Wire Rope Cutters for ease of trimming the wire rope X 1 (NT120)
Ideal for use on internal or external steel-framed structures, AHU roof pens, gantries, pipe racks, industrial roofs, warehouse ceilings, loading bay canopies / docks, basement garages etc
Specialist corner clamps and intermediate clips make for fast easy and secure fixing methods for installing bird control netting effectively against a perimeter of structural steel girders without the need for drilling
