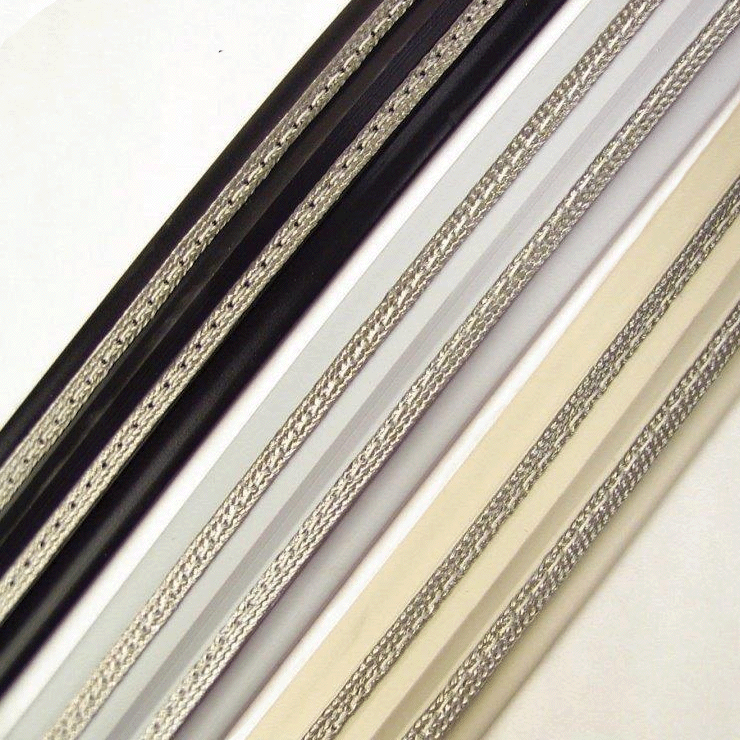

Bird Shock Flex Track Quick Connectors are installed in just seconds, and are designed to be attractive and long lasting.
Made from durable, UV-stabilised plastic with positive locking tabs, they will not spontaneously open; neither will they deteriorate even in the harshest environments.

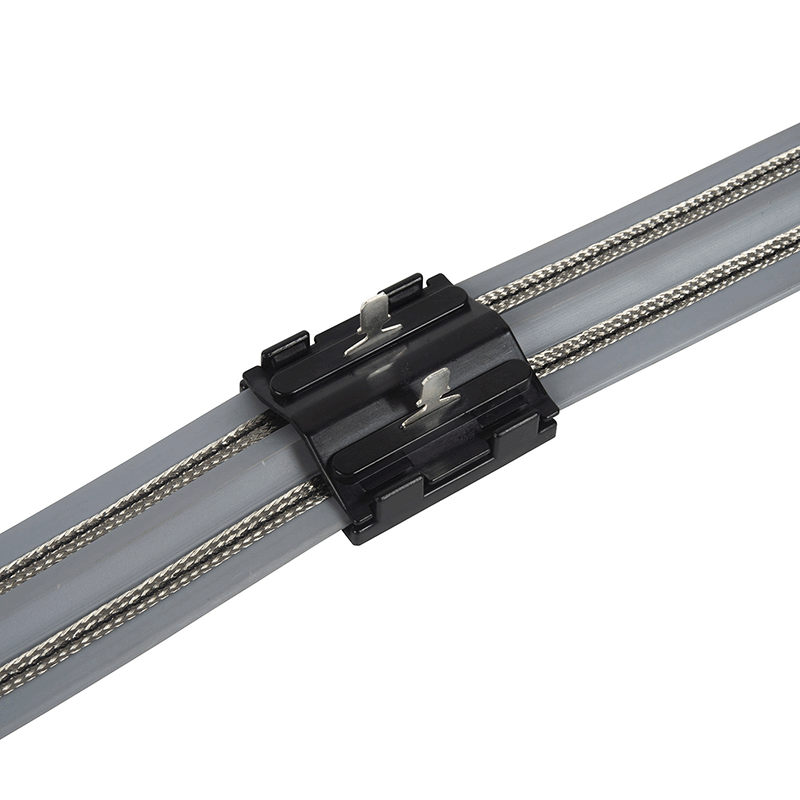

Straight Quick Connectors:

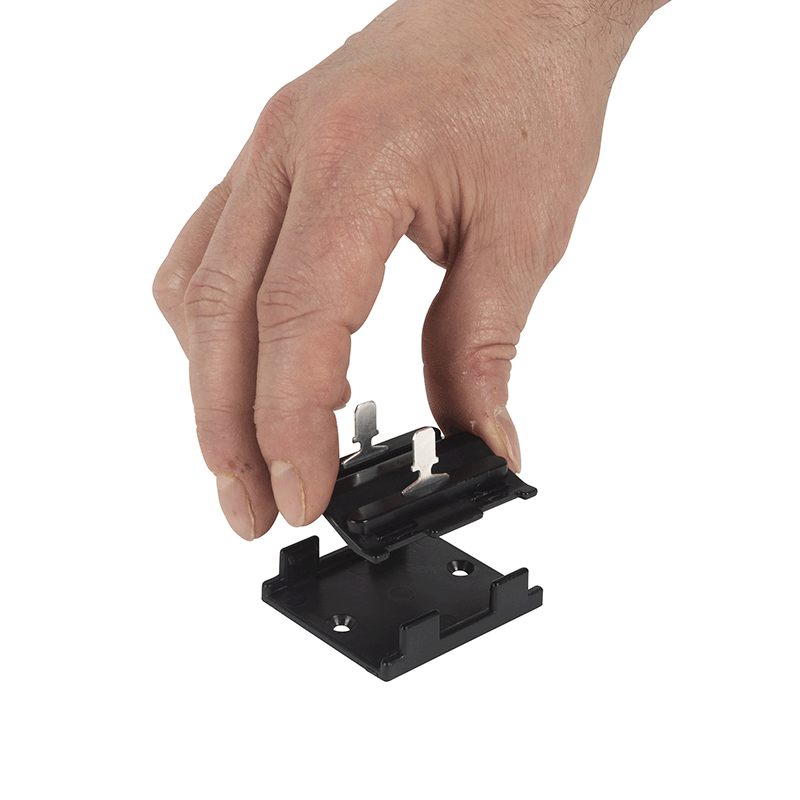

- Each straight quick connector has a base and top.
- Place the base underneath two meeting ends of Flex Track.
- Place the top of the quick connector on top of the meeting ends of Flex Track and apply pressure so it is firmly secured to the base.
- If you are not using the male spade connectors that come out of the straight quick connector for a jump point or power supply, then bend them outwards.

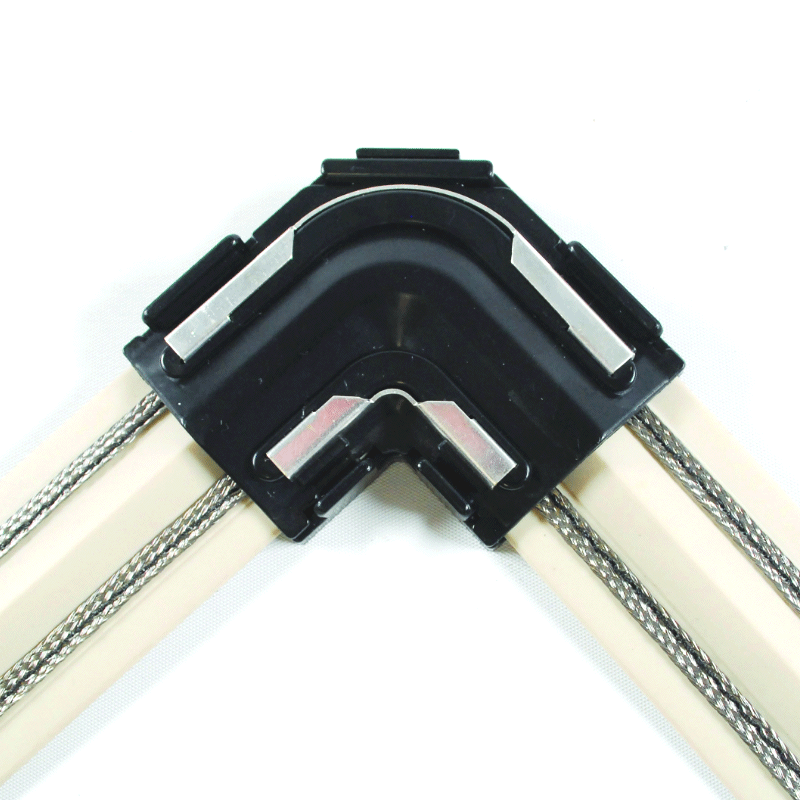

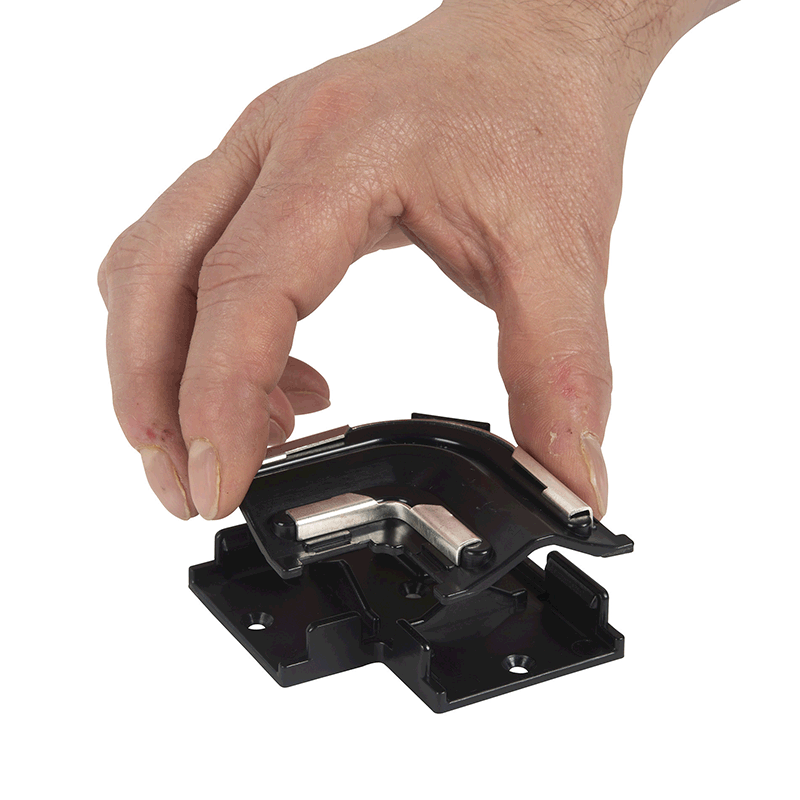

Corner Quick Connectors:
- Each straight quick connector has a base and top.
- Place the base underneath two meeting ends, unlike the straight quick connector these ends will fit into the slots and have a gap between them.
- Place the top of the quick connector on top of the meeting ends of Flex Track and apply pressure so it is firmly secured to the base.

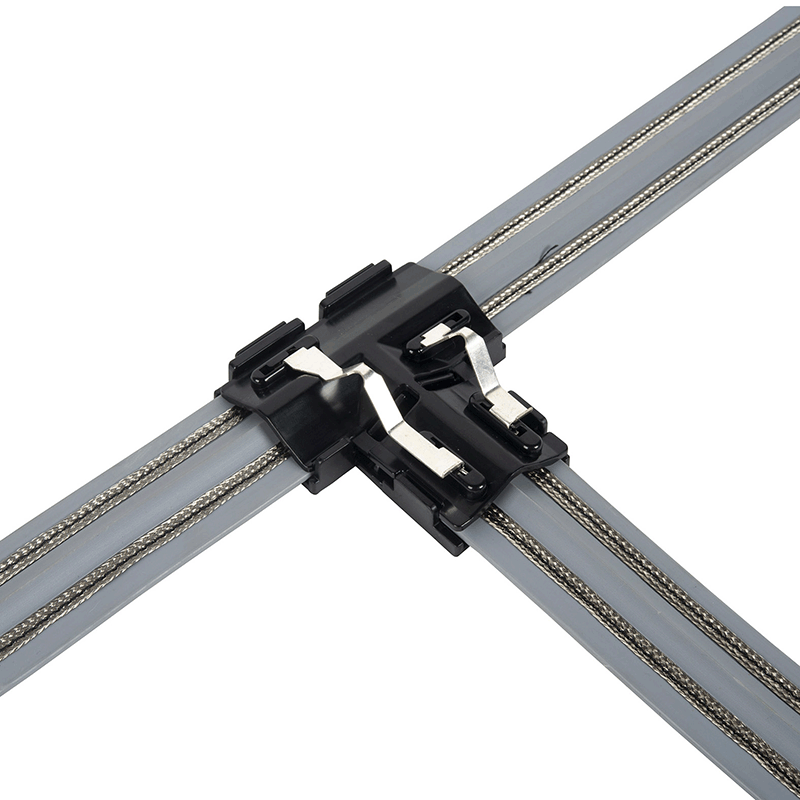

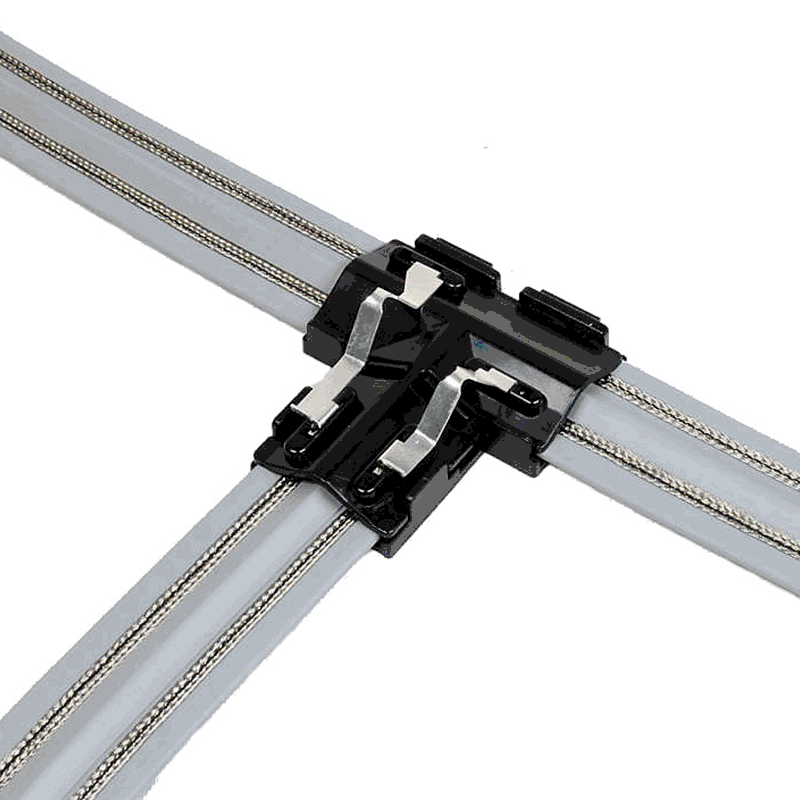

T-Junction Quick Connectors
- Many jobs require time consuming T connections. Now those can be done just as quickly as straight and corner connections. By cutting the small top fins the part also hinges up and down.
- Each quick connector has a base and top
- Place the base underneath three meeting ends.
- Place the top of the quick connector on top of the meeting ends of Flex Track and apply pressure so it is firmly secured to the base.

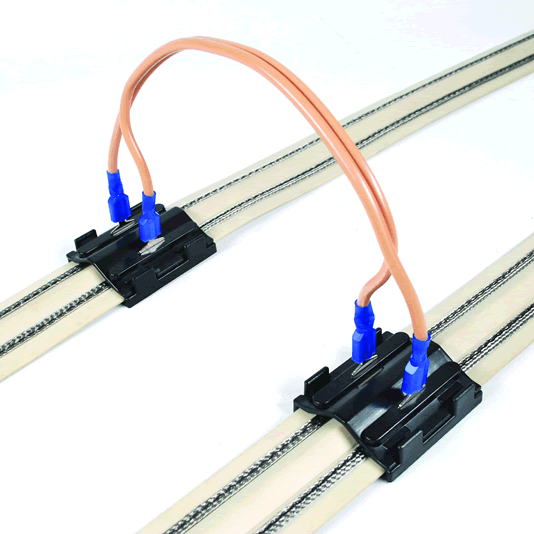

Jump Points using Quick Connectors:
- You can power multiple rows by creating Jump Points.
- Ensure two straight quick connectors are placed level with each other on each run of flex track.

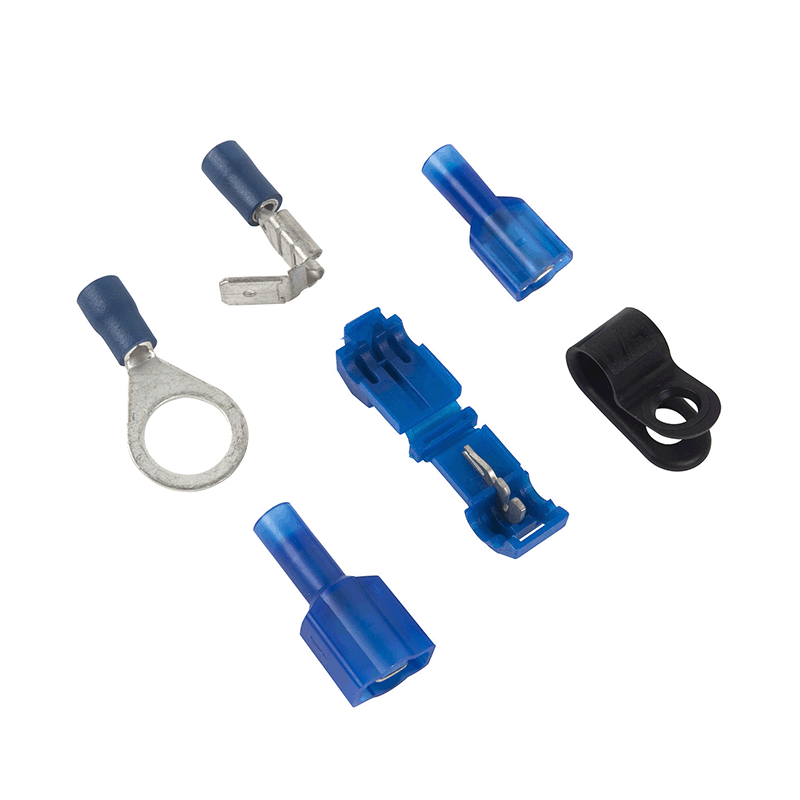

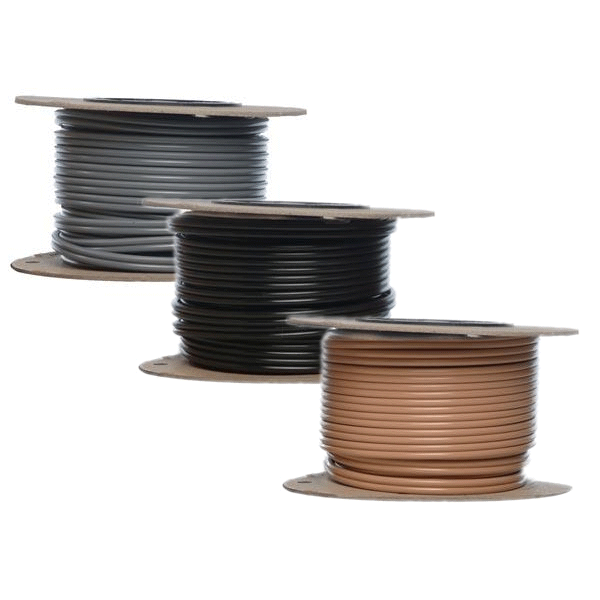

- Create two ‘jump leads’ using lead wire and female connectors. Ensure these aren’t too long as they may cause snagging and wear, or too short as they may pull on the male connections and come loose or cause damage.
- Attach these jump leads to the male spade connections
