Insect-O-Cutor Aura Replacement Glue Boards

Replacement glue boards for the Insect-O-Cutor Aura™ decorative flykiller is an ultra discreet unit designed for front-of-house applications.

GLUEBOARD REPLACEMENT

BEFORE REPLACING THE GLUEBOARD, ALWAYS ENSURE THAT THE UNIT IS DISCONNECTED FROM THE MAINS SUPPLY.

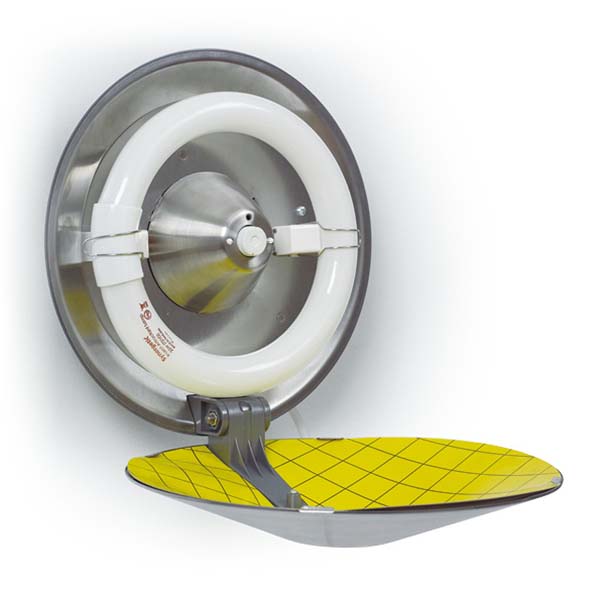

1. Swing down the front guard.
2. Remove the used glueboard by carefully pulling it clear of the unit.
3. Remove the protective release paper from the new glueboard.
4. Manoeuvre the straight edges of the flat glueboard into the gap between the horizontal guard and the vertical tube chassis.
Then manoeuvre the glueboard together to forma a conical shape and position the glueboard under the ‘front’ two metal retaining clips.
5. Finally, tuck the two cardboard ‘corners’ of the glueboard under the ‘back’ two metal retaining clips
