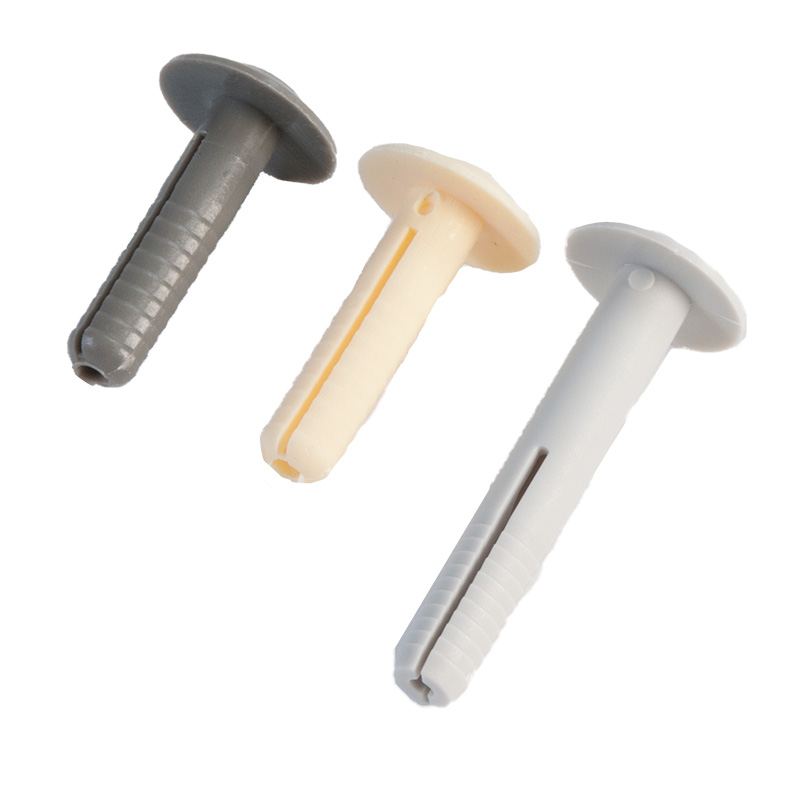

Masonry Rivets Intermediate Masonry Fixing
- Nylon shouldered masonry rivet / plug
- Requires a 6.5mm hole
- Sold in 25mm lengths in stone and grey & in 38mm length in grey only.
- Use in conjunction with either 4mm split pins, screw pins or screw eyes.
- Designed as a masonry intermediate fixing for netting wire rope frameworks.
Specification
Injection moulded nylon in either dark grey or buff stone colour
Mushroom head outer diameter 15mm.
Max height above surface once installed 4mm.
Hole diameter required in masonry = 6.5mm
Hole depth required in masonry = 25mm for PW209 & PW210 or 38mm for PW254.
Usage
For intermmediate netting fixings in masonry substrates.
Recommended as a quick and easy way of fixing into good quality concrete and brickwork.
