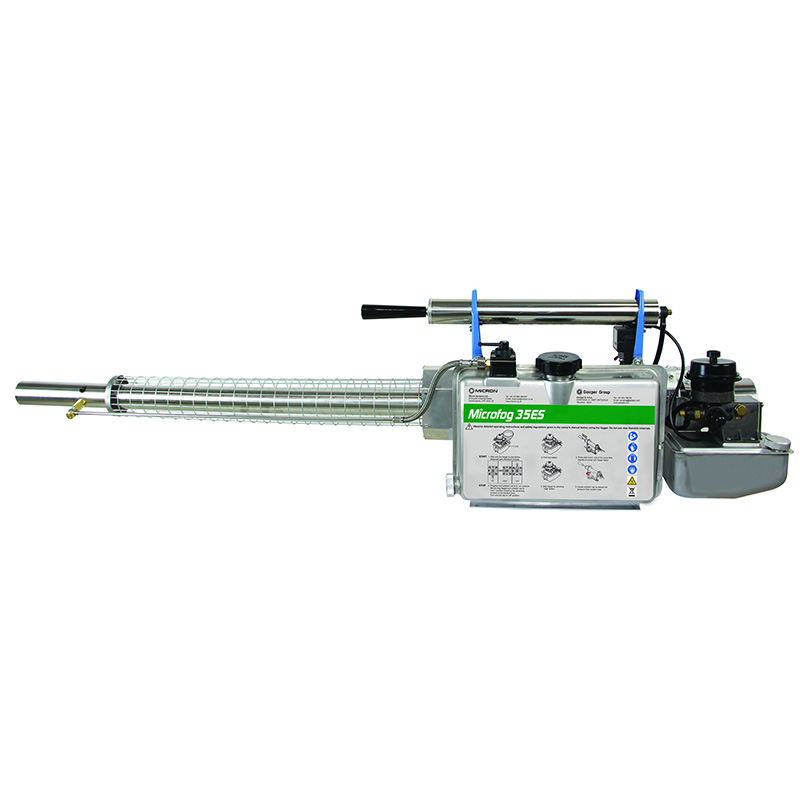

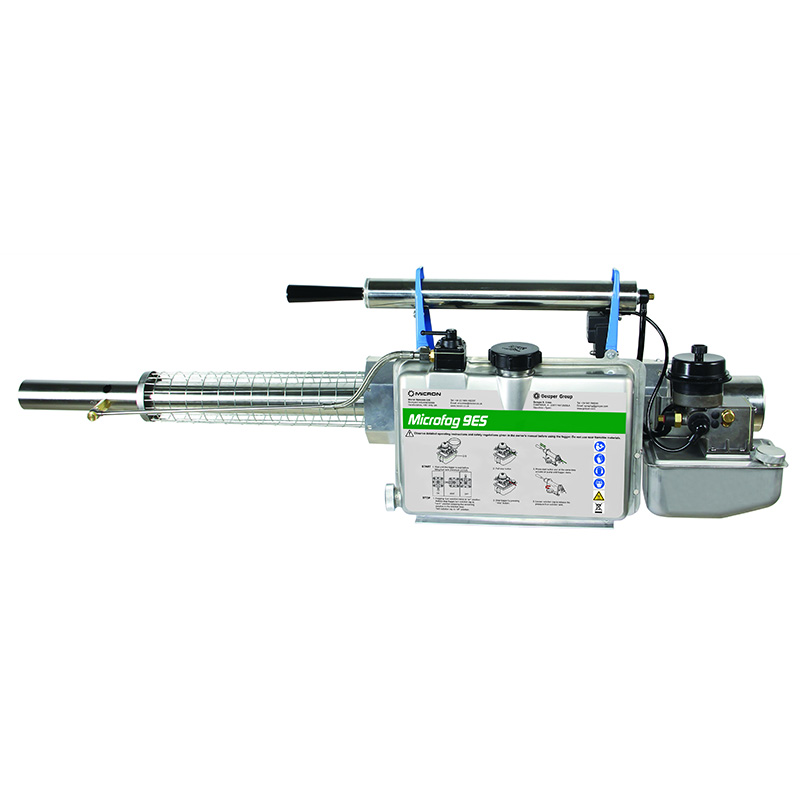

Microfog 18.7 kW Stainless Steel Thermal Foggers
- Microfog is a range of powerful yet lightweight foggers designed to produce high volumes of fog with fine particle sizes.
- The Microfog range is suitable for both water and oil based formulations
- Manufactured in accordance with International Standards for Equipment for Vector Control
- No spark plug required
- Immediate start-up
- New intake design and spark ignition system eliminates petrol overflow
- Accurate droplet size control
- Unique injection system minimises exposure to hot gasses
- Reversible fog tube for oil or water-based formulations
- Automatic emergency solution cut off valve
Specifications
| Model: |
Microfog 9ES / 9EP |
Microfog 35ES / 35EP |
| Dimensions (cm): |
27 W x 34 H x 114cm L |
27 W x 34 H x 136cm L |
| Weight (empty): |
7.6Kg (ES) 7.1Kg (EP) |
8.0Kg (ES) 7.8Kg (EP) |
| Combustion chamber output: |
11.0 kW (approx) |
18.7 kW (approx) |
| Fuel tank: |
1.2 l Stainless (ES) or HDPE (EP) |
1.2 l Stainless (ES) or HDPE (EP) |
| Fuel consumption: |
1.20 l/h (approx) |
2 l/h (approx) |
| Solution tank: |
6.0 l capacity |
6.0 l capacity |
| Solution output: |
8 - 42 l/h (approx) |
8 - 42 l/h (approx) |
| Pressure in solution tank: |
0.03 bar (approx) |
0.03 bar (approx) |
| Solution nozzles: |
0.8 - 2.0 mm |
0.8 - 2.0 mm |
| Power supply: |
4 x 1.5 volt batteries |
4 x 1.5 volt batteries |
Standard Accessories
| 1 set of solution nozzles |
0.8 = approx. 10 l/h
1.0 = approx. 15 l/h
|
0.8 = approx. 10 l/h
1.0 = approx. 15 l/h
1.2 = approx. 20 l/h
|
| 1 fuel funnel, 1 solution funnel; |
1 set of tools |
1 set of tools |
| 1 set of cleaning tools |
1 solution suction pipe |
1 solution suction pipe |
| 1 set of seals and diaphragms |
1 instruction manual |
1 instruction manual |
