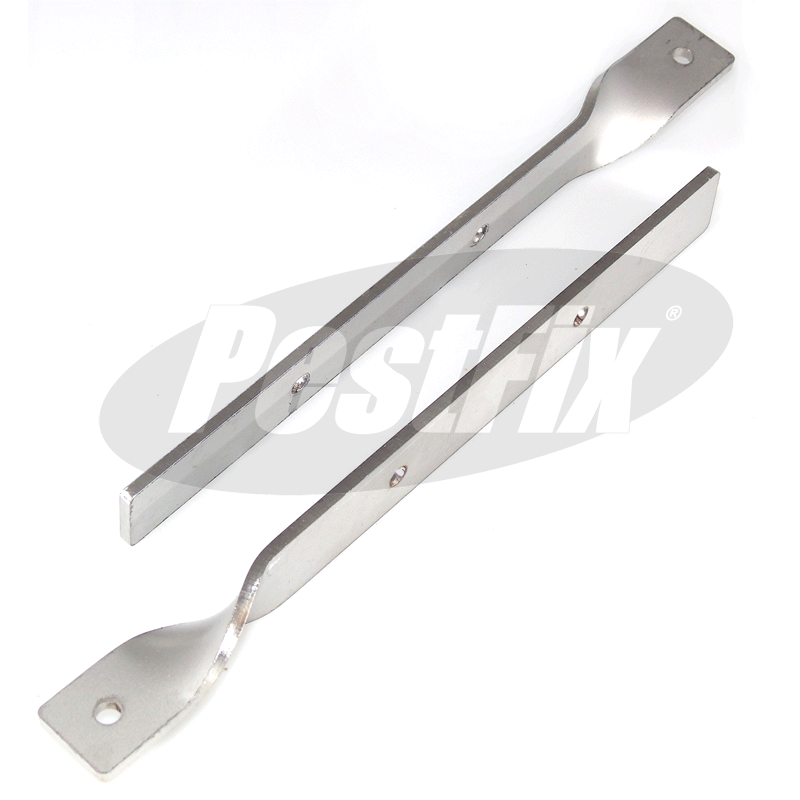

Grade 304 stainless steel 3mm plate 25mm wide by either 200mm, 350mm or 500mm in length.
First fixing hole is 50mm in from end of bracket then at 60mm centres.
Twist at end starts 50mm from end of bracket
Fixing and guide hole all 8mm in diameter
Used for retaining netting wire rope perimeter frameworks on the outside edge of parapets or ledges without having to drill too close to the edge of the substrate, which would cause damage.
Also used to stand netting clear of any architectural features to prevent damage from chaffing. or to allow windows to open behind nets without touching the net.
Especially useful when folding netting over features to prevent wear through chaffing such as cornicing, parapets and ledges.
