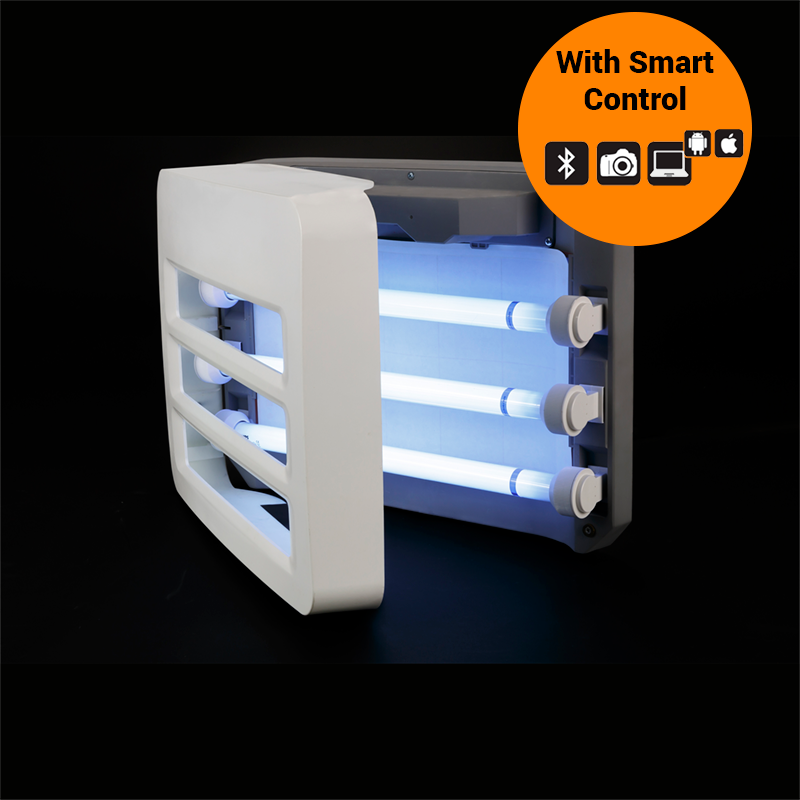

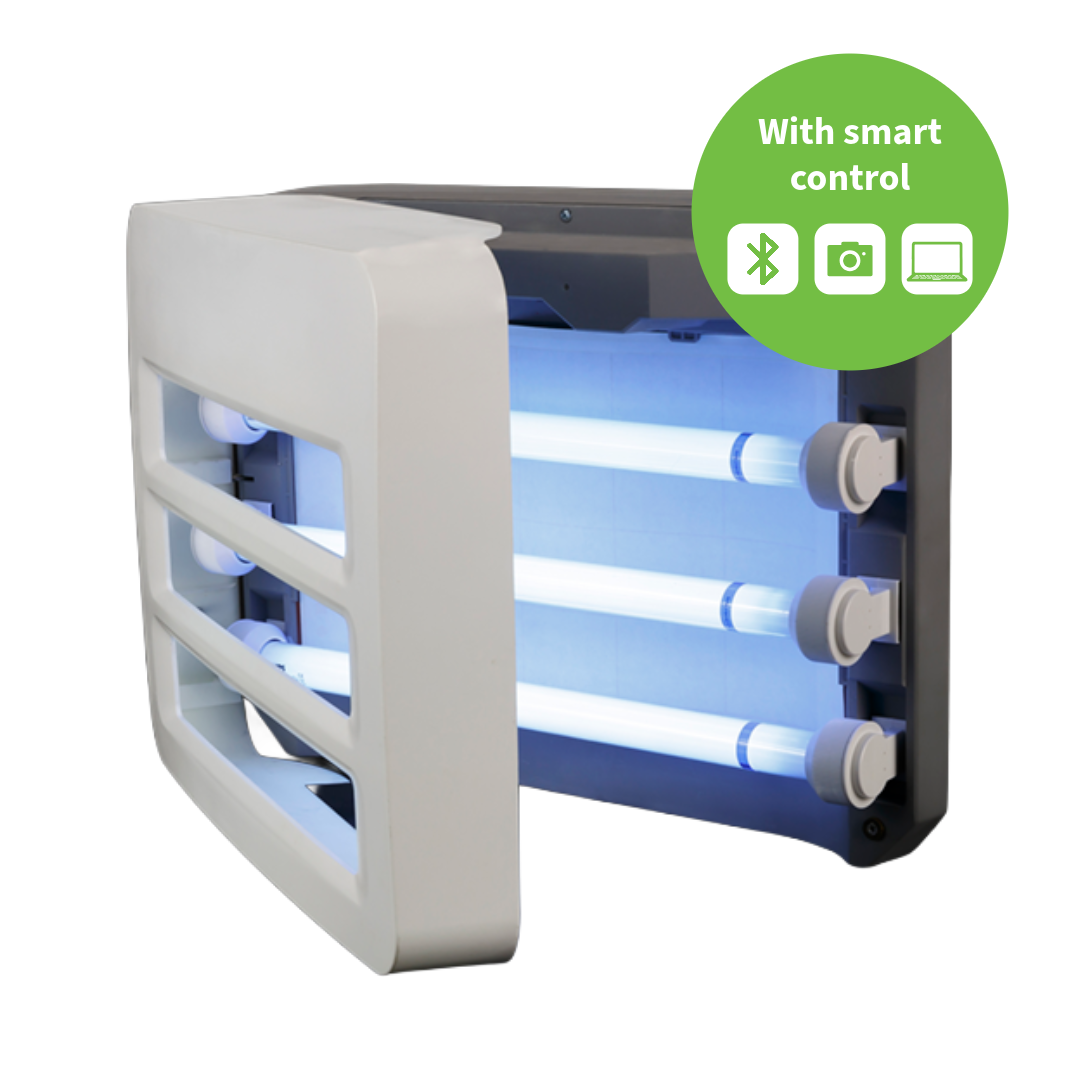

Omniveo 3 LED with Smart Control FK240-LED3-SC - Omniveo 3 LED with Smart Control
Professional use only - Sign into your A/c for price
Description Specification Usage Downloads
Smart Module pricing and availability from July 2022
The smart module for the Omniveo electric fly killer allowing for real time monitoring in both visual and count.
Additional monthly subscription fee is chargeable per smart module
Technical specifications: Smart control
Monitoring In real time, by means of a camera on the module.
Camera module monitors over 80% of landing area
System Communication In real time, by means of 2G/LTE-M on the module via Bluetooth connection (time, catch, parameters)
Data storage Protected area, access via cloud software
lexible Camera & Communication module can also be mounted retrofit
Back-up Back-up battery can store data up to over 1 year
Electrical supply 220-240V ~ 50-60 Hz (Other supply upon request)
Effective area 2 lamps 50 - 100 m2, 3 lamps 80 - 150 m2
IP rating IP 20 or IP 65 on request
Lamp 2x 15 W or 3x 15 W Astron UV-A lamps in Fluorescent or LED execution
Glue board 2.06.6700 - Scannable technology, multiple size board placement
Approvals CE / EMC / LVD / RoHS / REACH / ISO 9001 compliant
Guarantee 2 years on mechanical & electrical performance
Ballast A Philips Electronic Ballast, 40k hrs lifetime
Housing ABS housing
Weight 4 Kg
Dimensions 470 x 325 x 100 mm
