Slate Brackets

• Designed to slip between adjoining slates
• Holds the wire rope close to the surface of the roof, without having to drill the tiles
• Made from stainless steel
• The centre of the hole sits 200mm above the base of the bracket
• Hole accepts 2mm and 3mm wire rope and the hook of an M5 barrel strainer

Manufactured from 316 stainless steel

Hole diameter = 6mm

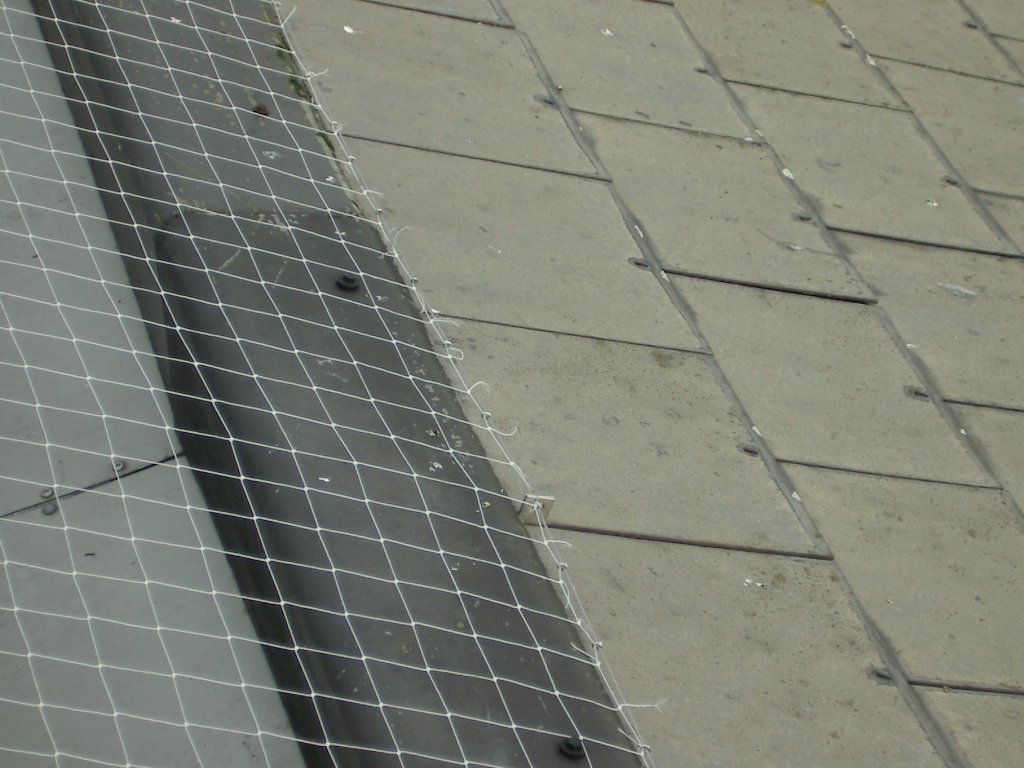

Ideal for use as a netting intermediate fixing with slates and non-interlocking tiles.

Spacings:

75mm and 50mm nets = 1m spacings

40mm and 28mm nets = 0.5m spacings

19mm nets = 0.3m spacings

For use as a light-duty intermediate fixings for securing netting perimeter wire ropes to roof tiles as an alternative to drilling tiles, slate brackets or surface mount fixing.
