Steel Wire Rope 2mm Diameter 7x7 Strand
- 2mm diameter 7X7 strand steel wire rope
- For use in perimeter framework cables for supporting and tensioning bird control netting
- Available in galvanised and grade 316 stainless steel
- Available in 25 metre rolls or 50 and 200 metre wooden reels
- Requires 2.5mm ferrules or M3 wire rope grips see related products
Specification
- Diameter of rope = 2mm
- Number of strands = 7
- Number of wires per strand = 7
- Lay = RHOL
- Finish = Galvanised or Grade 316 Stainless
Minimum Breaking Load, Factor of Safety & Safe Working Load
Galvanised Steel: 260kg MBL, 5:1 FOS = SWL 50Kg
Stainless Steel: 242Kg MBL, 5:1 FOS = SWL 48Kg
Cutting Method
Side cutters to give a clean, crush-free cut, to allow wire rope to feed through ferrules or wire rope grips cleanly, use either (NT119) or (NT120)
Retention Method
Galvanised Steel Wire Rope: Use 2.5mm Aluminium Ferrules (NF280) or Galvanised Steel Wire Rope Grips (NF140)

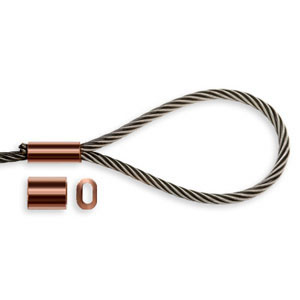

Stainless Steel Wire Rope: Use 2.5mm Copper Ferrules (NF139) or Stainless Steel Wire Rope Grips (NF229)
Usage
Warning: To avoid puncture wounds to fingers always wear safety gloves when handling and working with these products.
For use in supporting and securing bird control netting to structures in conjunction with tensioning products, corner fixings, intermediate fixings and hog ring staples / corner ties
Maximum run between corner fixings 10 metres
Maximum number of corners in one wire run = 1
Product can also be used as a cross wire or intermediate wire to act as a support for netting systems
