Steel Wire Rope 3mm Diameter 7x7 Strand
- 3mm diameter 7X7 strand steel wire rope for heavy duty bird control netting installations
- For use in perimeter framework cables for supporting and tensioning bird control netting
- Available in galvanised steel & grade 316 stainless steel on 50m & 200m wooden reels
- Ideal for use on unsupported spans in excess of 10m and for 19mm an 28mm mesh nets
- Requires 3.5mm ferrules (DIN3.5) / M3 wire rope grips to terminate (see related products)
Specification
- Diameter of rope = 3mm
- Number of strands = 7
- Number of wires per strand = 7
- Lay = RHOL
- Finish = Galvanised or Grade 316 Stainless
Minimum Breaking Load, Factor of Safety & Safe Working Load
Galvanised Steel: 260kg MBL, 5:1 FOS = SWL 50Kg
Stainless Steel: 242Kg MBL, 5:1 FOS = SWL 48Kg
Cutting Method
Side cutters to give a clean, crush-free cut, to allow wire rope to feed through ferrules or wire rope grips cleanly, use either (NT119) or (NT120)
Retention Method

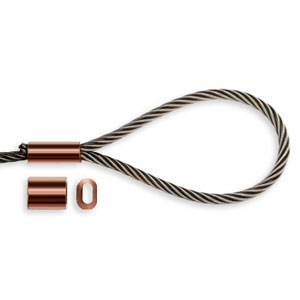

Galvanised Steel Wire Rope: Use 3.5mm Aluminium Ferrules or 3mm Galvanised Steel Wire Rope Grips (NF140)
Stainless Steel Wire Rope: Use 3.5mm Copper Ferrules (NF298) or 3mm Stainless Steel Wire Rope Grips (NF229)
Usage
Warning: To avoid puncture wounds to fingers always wear safety gloves when handling and working with these products.

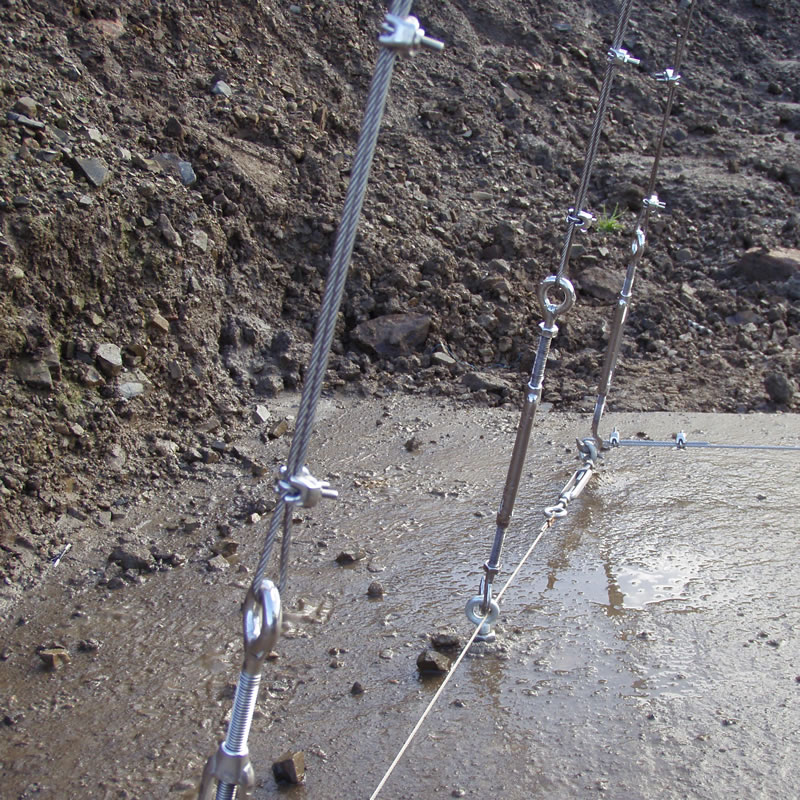

For use in supporting and securing heavy-duty bird control netting to structures in conjunction with tensioning products, corner fixings, intermediate fixings and hog ring staples / corner ties
Maximum run between corner fixings 30 metres
Maximum number of corners in one wire run = 1
Product can also be used as a cross wire or intermediate wire to act as a support for netting systems
