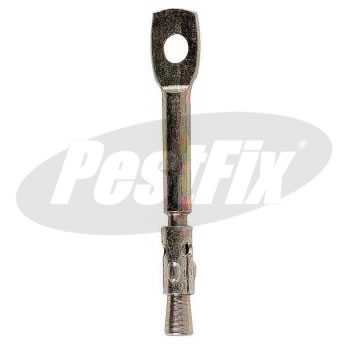

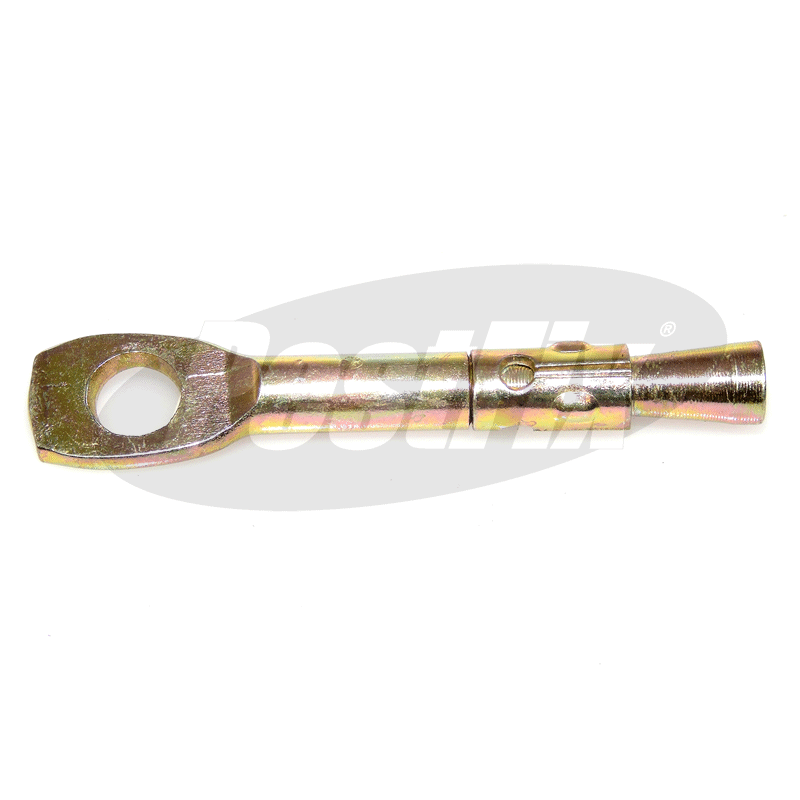

Wire Hanger Intermediate Masonry Fixing BZP - 6mm

• Fast light-medium duty intermediate masonry fixing for netting installations.
• Ideal for netting installations over 100 metre squared especially 19mm & 28mm nets.
• Simply drill an 6mm X 40mm hole insert fully and pull firmly backwards.
• Manufactured in BZP mild steel.

Manufactured in bright zinc plated and yellow passivated mild steel.

Requires a 6mm diameter hole

Overall length = 55mm

Hole depth required = 40mm

Tensile load rating 1.5KN

Eyelet diameter = 6mm

The Wirehanger is an expansion anchor for securing suspension wires in concrete, enabling fast and accurate installations of netting perimeter wire rope systems.

Ideal for use as a fast-fit light-medium duty masonry intermediate fixing

Spacings:

75mm and 50mm mesh nets = 1m

28mm mesh nets = 0.5m

19mm mesh nets = 0.3m

Mark required position of the fixing

Drill a 6mm diameter hole to a minimum depth of 40mm

Brush / blow-out all dust and loose material

Insert fixing fully and pull firmly to lock in position

Do not use fixing less than 35mm from an outside edge or corner
