• Used as corner fixings for perimeter wire rope netting frameworks

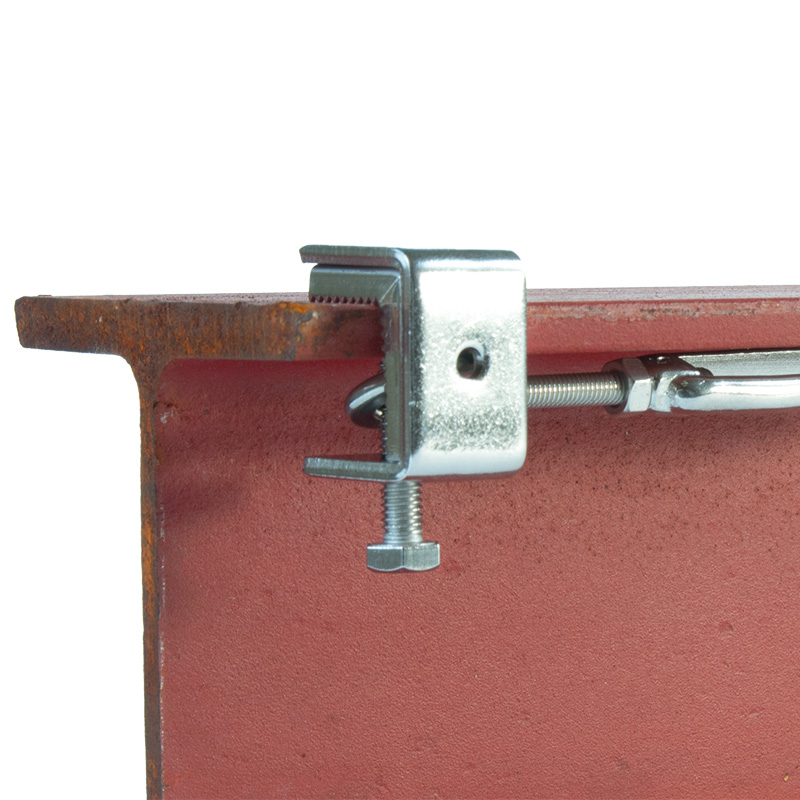

• Secure to the flanges of structural steel such as 'H' or 'C' section beams and columns
• Stainless steel toothed for flanges 0mm - 20mm thick
• Dimensions: 18 x 20mm

Netting corner fixings are the foundation of any netting system as they are designed to take all of the tensile loads delivered into the netting perimeter's wire rope framework by the the barrel strainers, additional wind-loadings and loads imposed by snow, ice or leaves.

Use the Beam Clamp to anchor runs of wire rope at each end of your bird control netting perimeter framework and at 10m linear intervals around the perimeter in order to strain from.

Your perimeter wire rope framework should start, finish and be tensioned from these clamps.

Product Specifications
