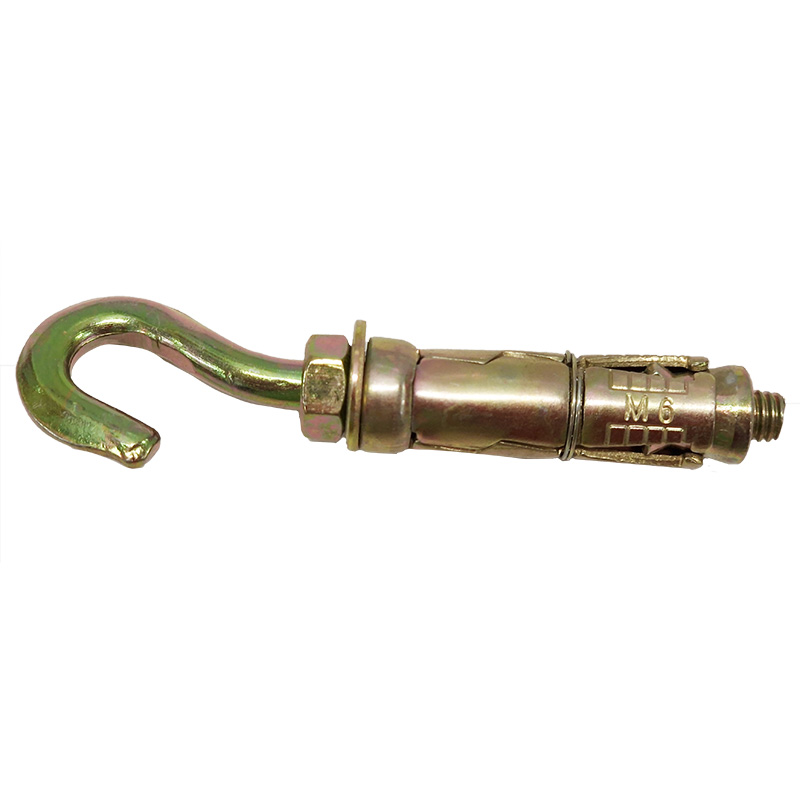

Hook Bolts M6 Sleeved (Netting Corner Fixing)

• Sleeved hook bolt for permanent fixing into masonry
• These corner fixings are designed to take the majority of the strain imposed by the barrel strainers
• Hook allows for demounting of the the wire rope for access
• Compatible with our 2mm and 3mm diameter steel wire rope

NF147 Netting Corner Eye Bolt M6 Yellow Passivated:

• M6 Shield sleeve 50mm long
• 8 mm internal diameter hook.
• Shield anchor requires a 12mm diameter hole in the masonry
• Yellow passivated shield, bright zinc plated hook
