Intermediate Non Piercing Roof Mount

Heavy duty non-piercing roof mount, hot dipped galvanised steel
Ideal for us as an intermediate mount for bird netting in industrial or commercial applications
Requires 2 x 450mm x 450mm paving slabs to prevent wind lift
4 X holes in pole top, 12mm dia. accepts the hook of M5, M6 & M8 barrel strainers

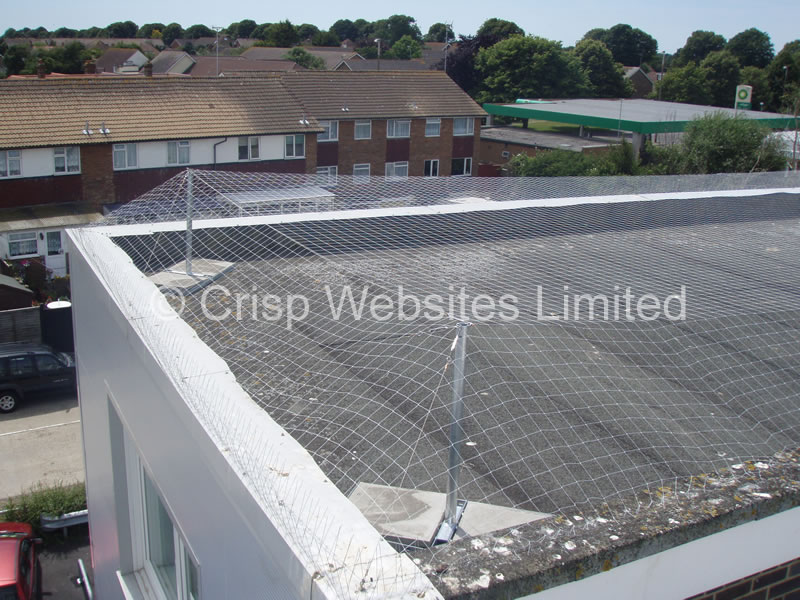

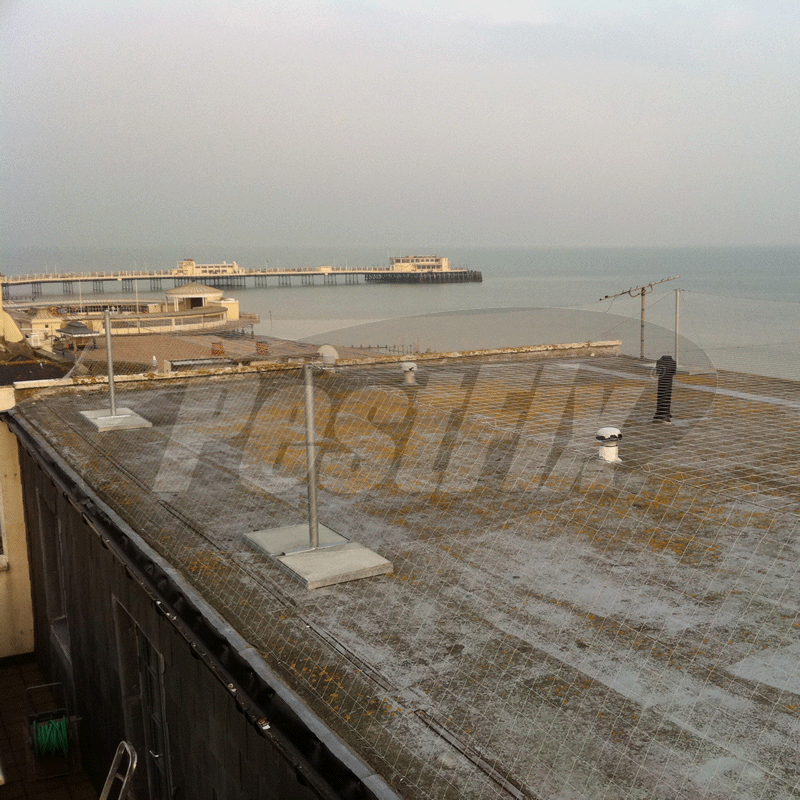

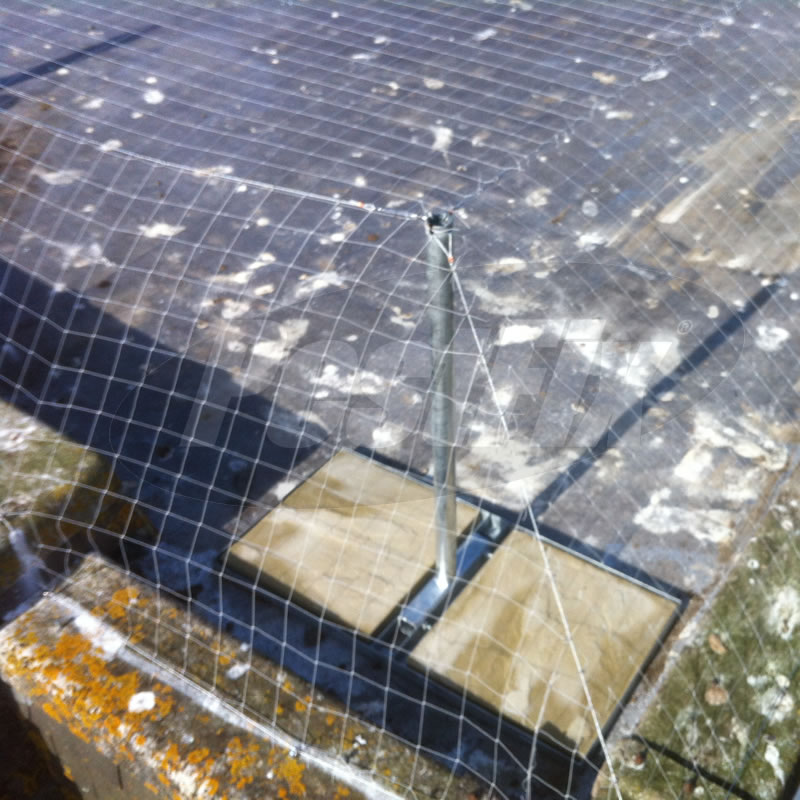

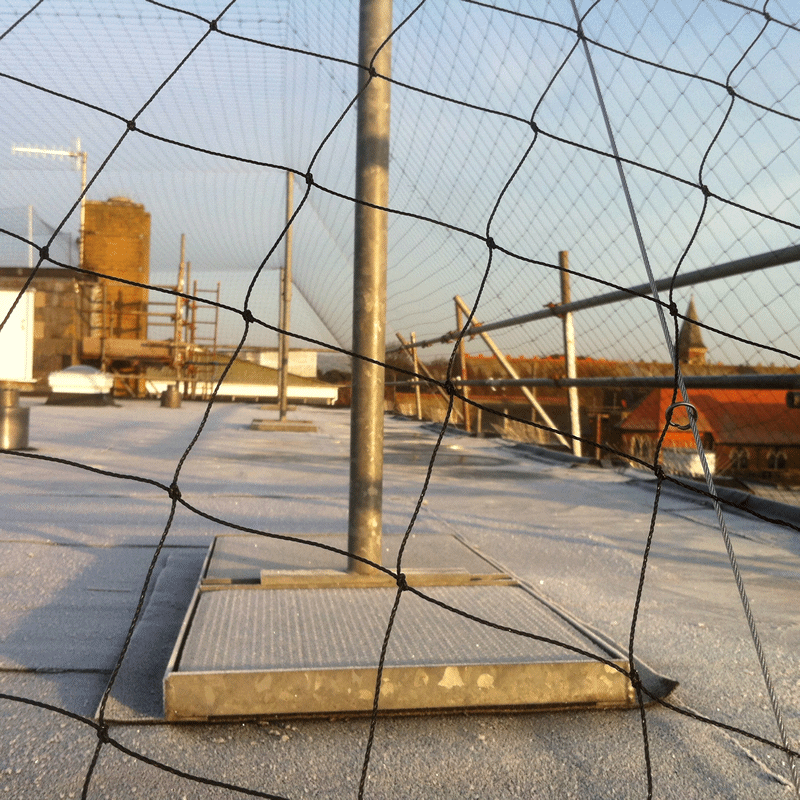

This non piercing roof mount allows effective installation of bird netting without piercing the roof. The mounts are weighted down by using paving slabs (Not provided) to prevent high winds from lifting or toppling the mount

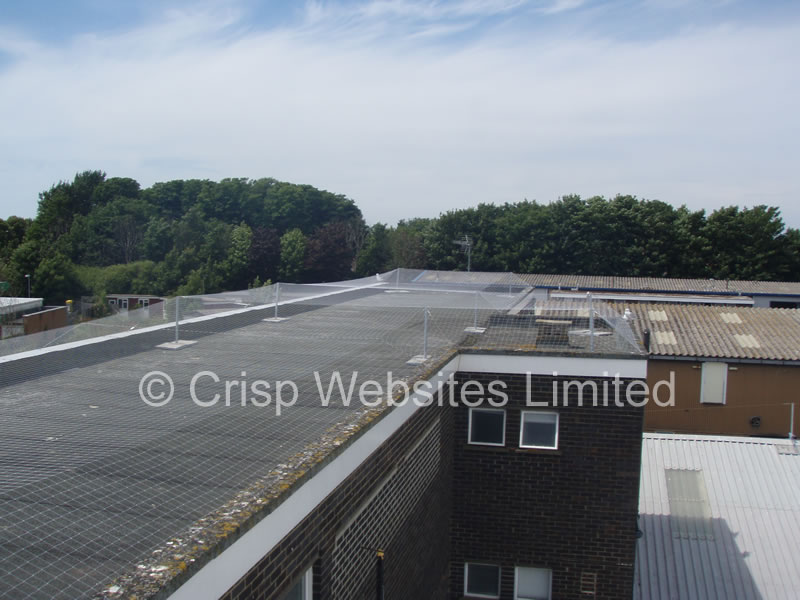

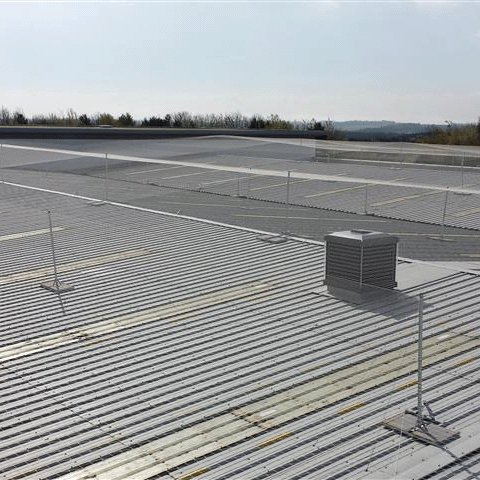

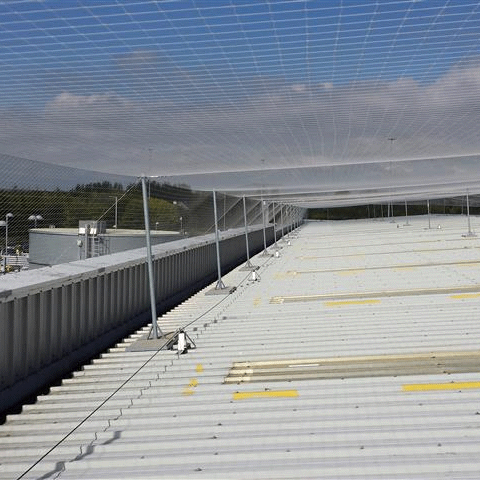

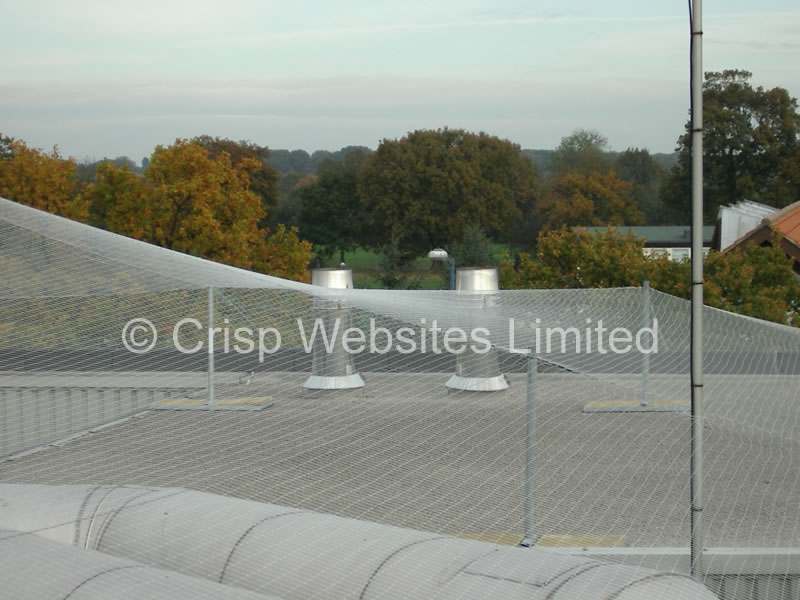

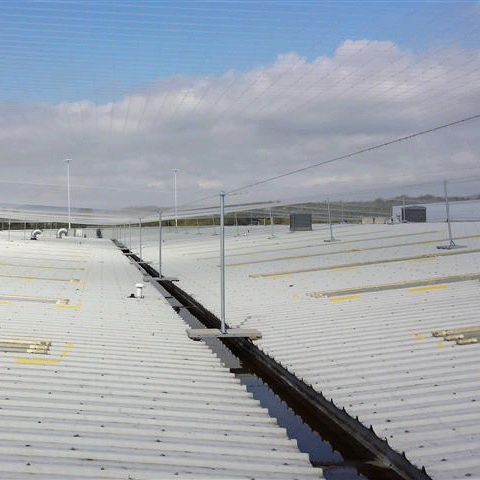

Ideal in the protection of industrial sheet roofs or large residential roofs against pigeons and seagulls.

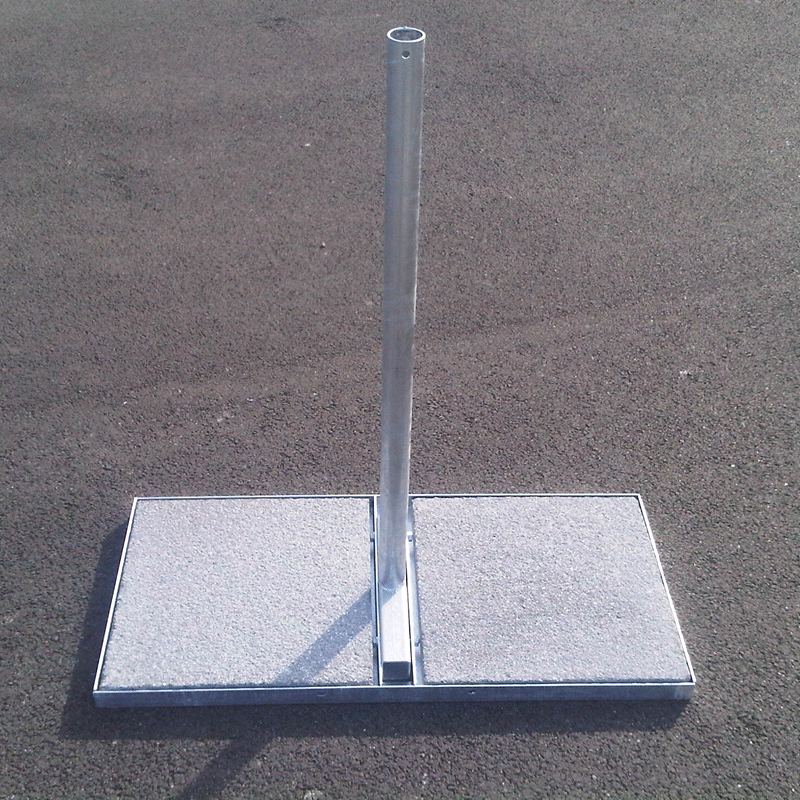

This mount requires 2 x 450mm x 450mm paving slabs, and is available in either 1m or 2m heights.

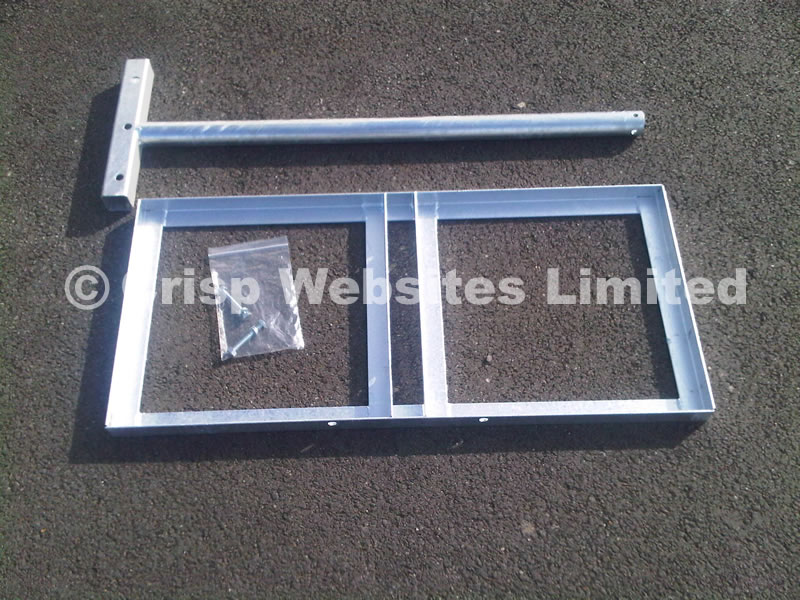

Each mount includes:

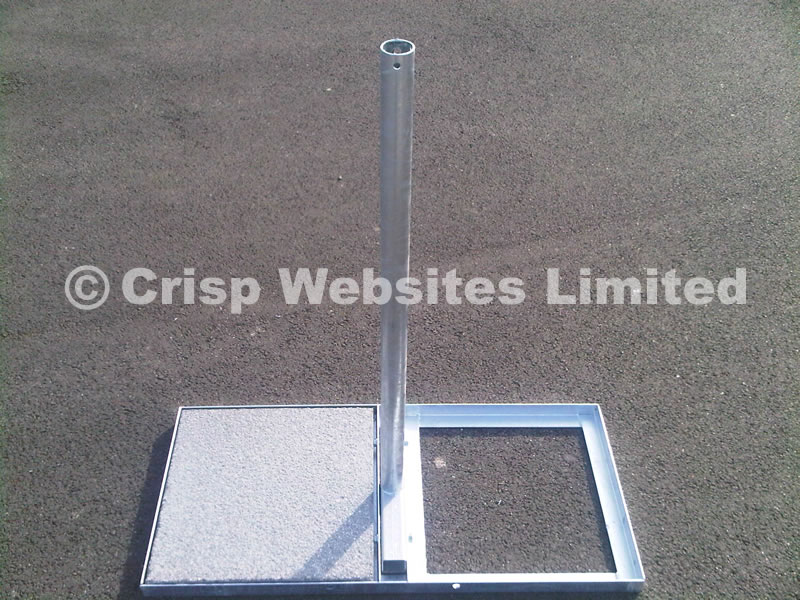

1 X base tray
1 X T-bar pole either 1m or 2m tall
2 X M10 75mm Bolts
2 X M10 plain nuts
2 X M10 plain washers

All of the above items are supplied in either galvanised steel or BZP finish

You will need 2 X 17mm spanners to assemble the units.

T-bars have an outside diameter of 51mm, and inside diameter of 49mm

Can be used as an intermediate mount to support bird control netting or the 1m mount can be used to mount bio-acoustic bird scarer speakers and/or CPUs. N.B. we do not recommend the use of the 2m mount for bio-acoustic applications, instead a corner non-piercing 2m mount should be used (NF187).

For full installation instructions please click on the file download

Assembly Instructions
