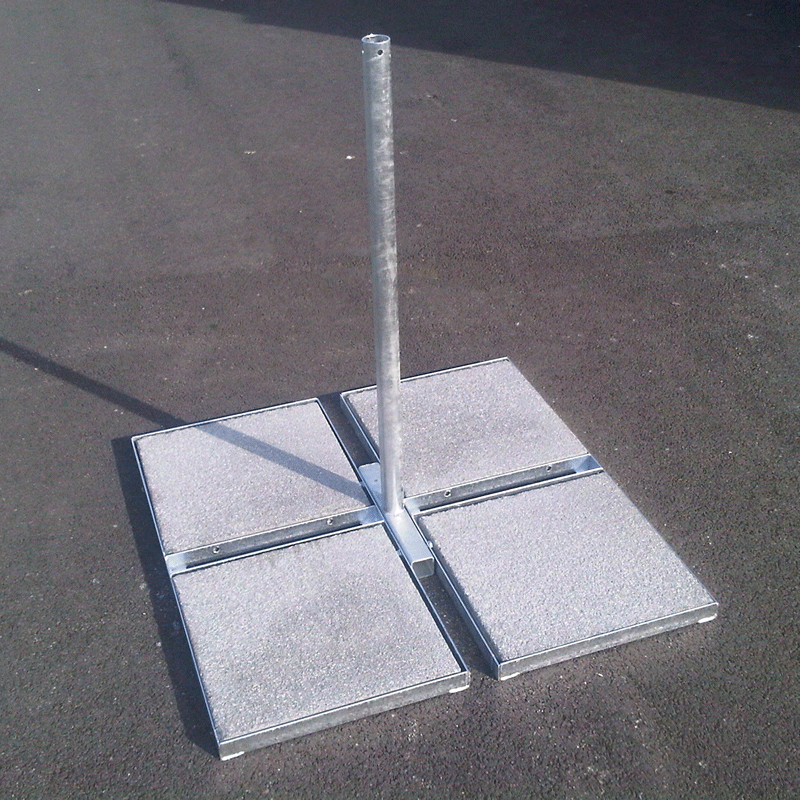

Corner Non Piercing Roof Mount

• Heavy duty corner non-piercing roof mount, hot dipped galvanised steel
• Ideal for us as a corner mount for bird netting in industrial or commercial applications
• Available in two pole heights 1m & 2m, requires 4 x 450mm x 450mm paving slabs

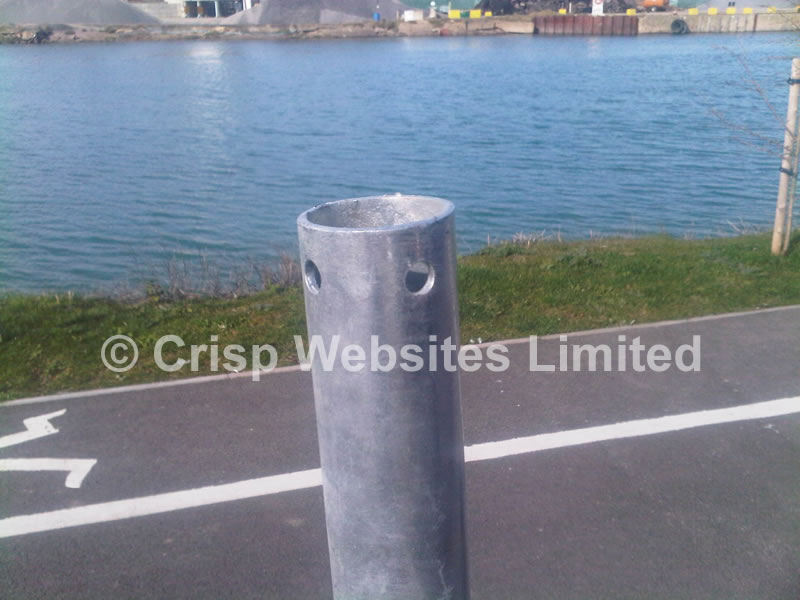

• 4 X holes in pole top, 12mm dia. accepts the hook of M5, M6 & M8 barrel strainers
• Foot print dimensions, 980mm X 990mm

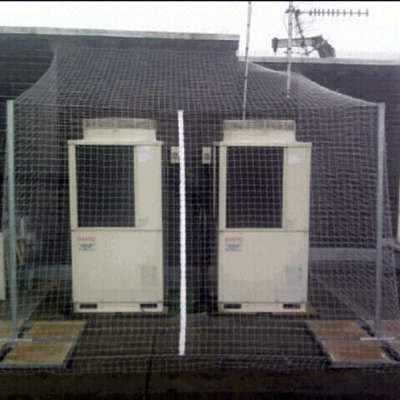

This non piercing roof mount allows effective installation of bird netting without piercing the roof. The mounts are weighted down by using paving slabs (Not provided)

Ideal in the protection of industrial roofs against pigeons and seagulls.

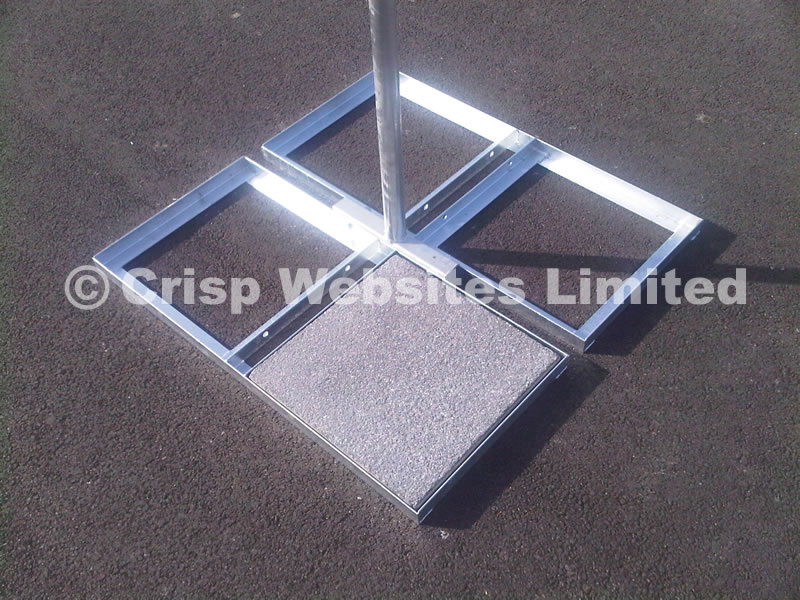

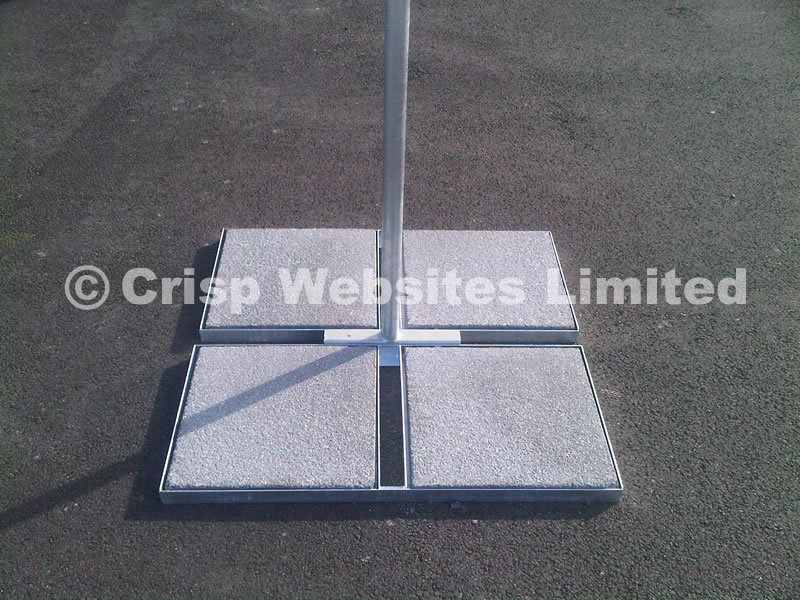

This mount requires 4 x 450mm x 450mm paving slabs, and is available in either 1m or 2m pole heights.

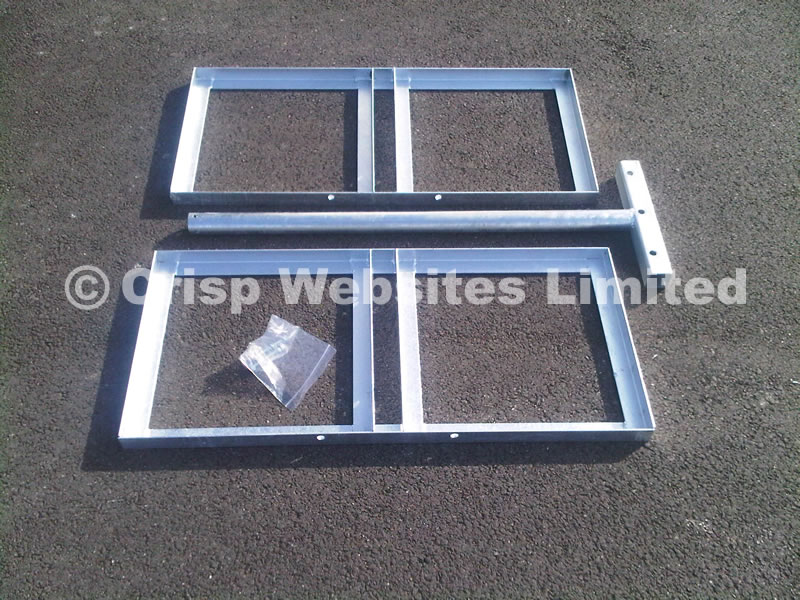

Each mount includes:

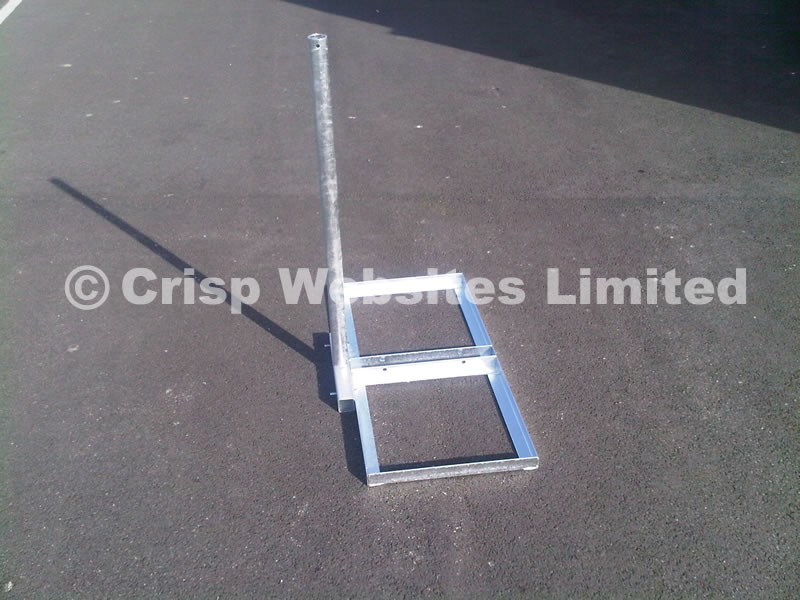

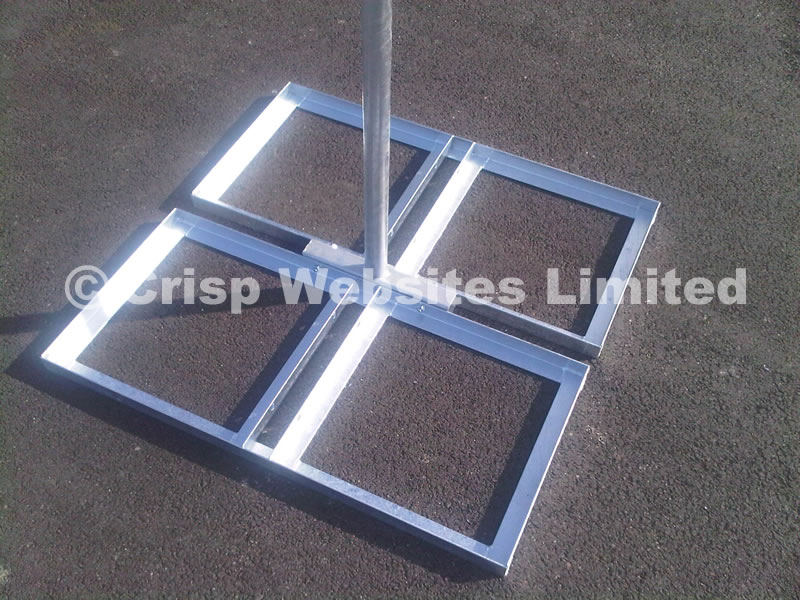

• 2 X base tray
• 1 X T-bar pole either 1m or 2m tall

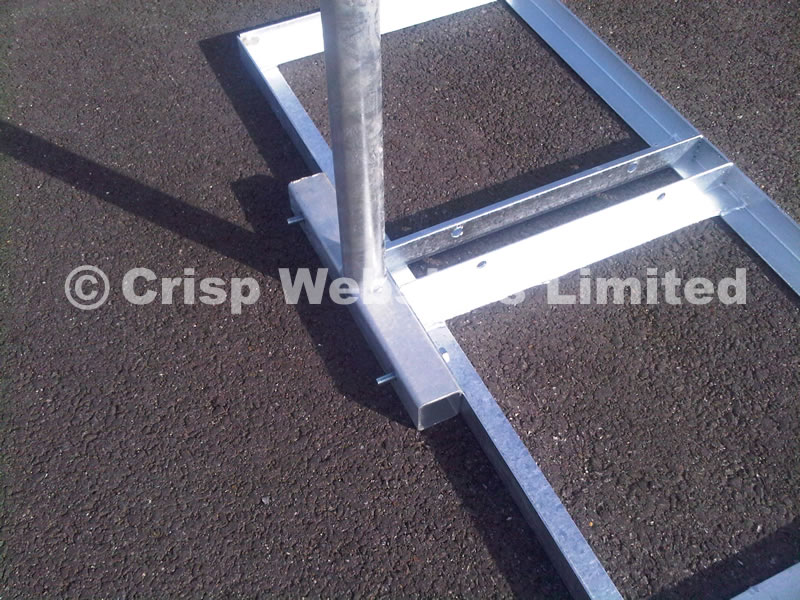

• 2 X M10 75mm Bolts
• 2 X M10 plain nuts
• 2 X M10 plain washers

All of the above items are supplied in either galvanised steel or BZP finish

You will need 2 X 17mm spanners to assemble the units.

T-bars have an outside diameter of 51mm, and inside diameter of 49mm

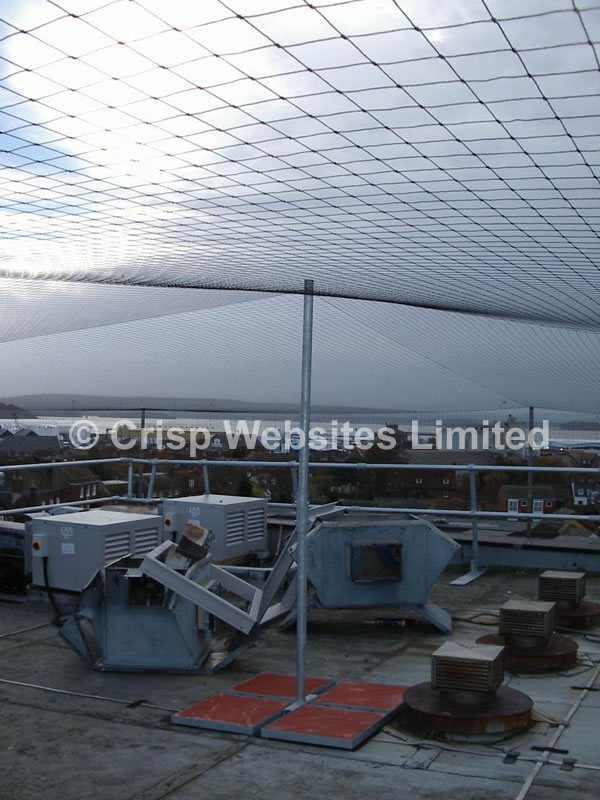

Can be used as an corner mount to support bird control netting, or the mount can be used to mount bio-acoustic bird scarer speakers and/or CPUs.

Assembly Instructions
