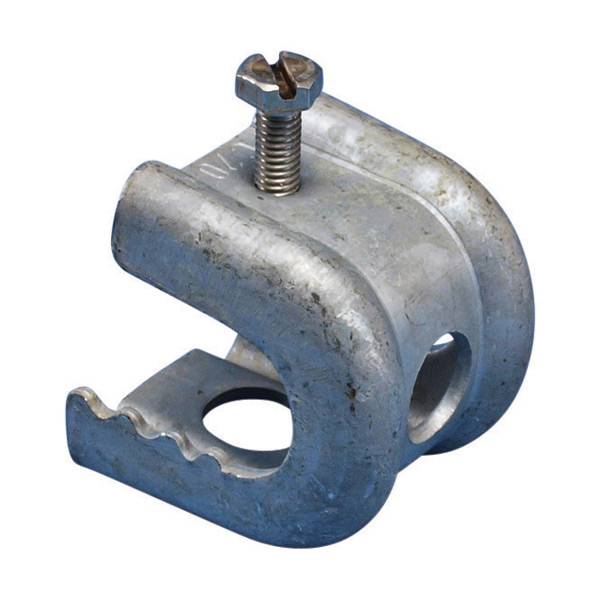

M8 Bridge Clamp 30-45mm Flange Galvanised Steel

• Netting corner fixing for steelwork flanges
• Suitable for both tapered and non-tapered flanges
• Material: Mild steel (stainless steel available to special order)
• Finish: Bright zinc plated, hot dip galvanised
• Ideal for installing netting to underside of bridges and industrial structures

Material: Steel

Finish: Hot-Dip Galvanized

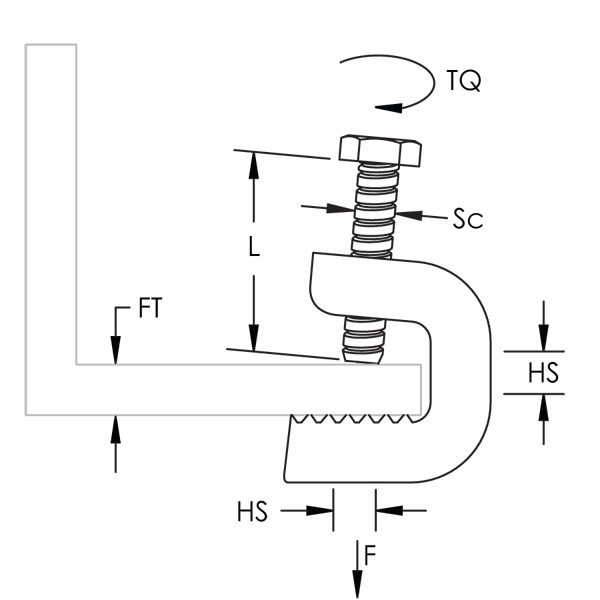

Flange Thickness (FT): 30 – 45 mm

Hole Size (HS): 14 mm

Screw Diameter (Sc): M8

Screw Length (L): 30 mm

Torque (TQ): 3 N-m

Static Load (F): 1,100 N

For use as a netting corner fixing on structural steel bird control netting installations

Use one clamp for every 10m run of wire

Safe for use on both tapered and non-tapered flanges, setscrew must be tightened and torqued onto the sloped side of the I-beam.
