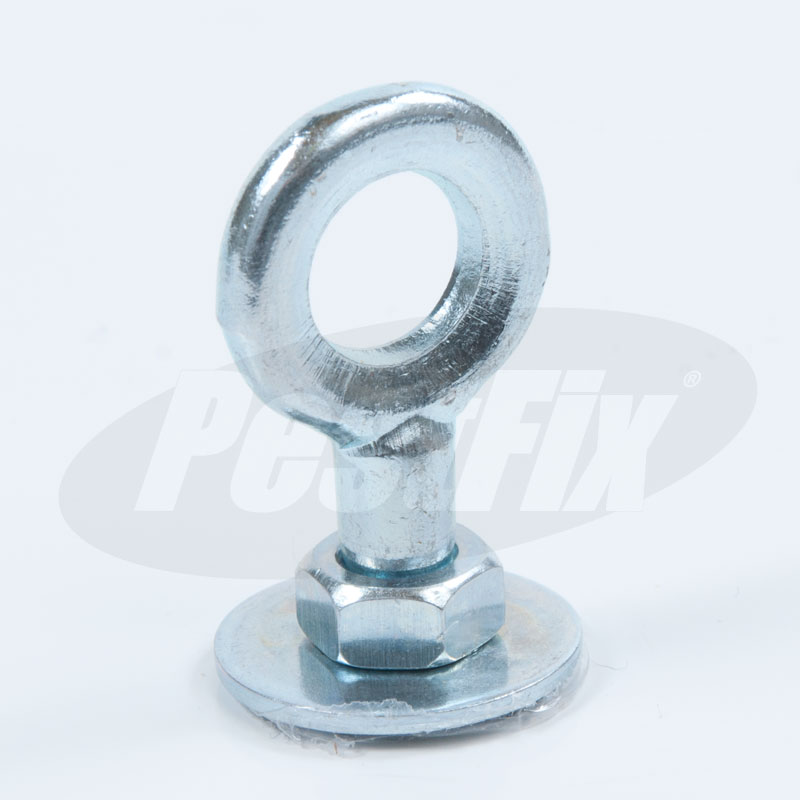

Beam Bolt 6mm Structural Steel Corner Eye Fixing
- Used as a corner fixing for attaching netting perimeter wire rope frameworks
- Attach to structural steel work such as beams
- Use the eye to start and finish runs of wire rope and to hook barrel strainers
- Requires a 6.5mm hole to be drilled into steelwork and a 10mm spanner to tighten it
- Available in galvanised or stainless steel
- Sold in packs of 10
Specification
Shaft diameter = 6mm
Threaded shaft length = 50mm
Overall shaft length = 55mm
Forged eye internal diameter - NF161 = 12mm, NF162 = 10mm
Washer outside diameter - NF161 = 18mm, NF162 = 20mm
Materials:
Bright zinc plated mild steel
or
Grade 304 stainless steel
Usage

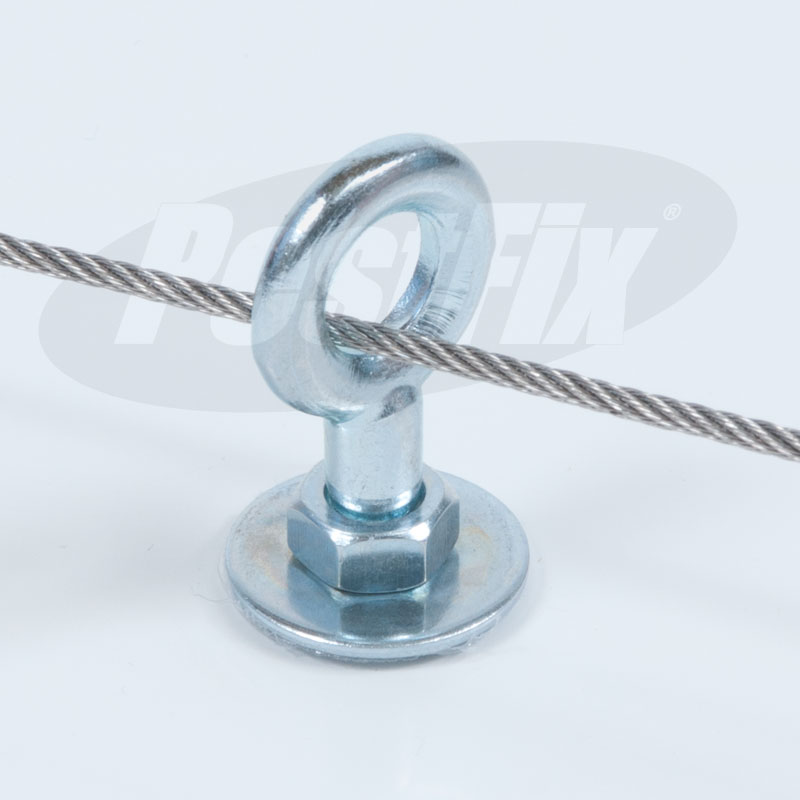

Use the eye to start and finish runs of wire rope and to hook barrel strainers through for tensioning perimeter wire rope netting frameworks.
