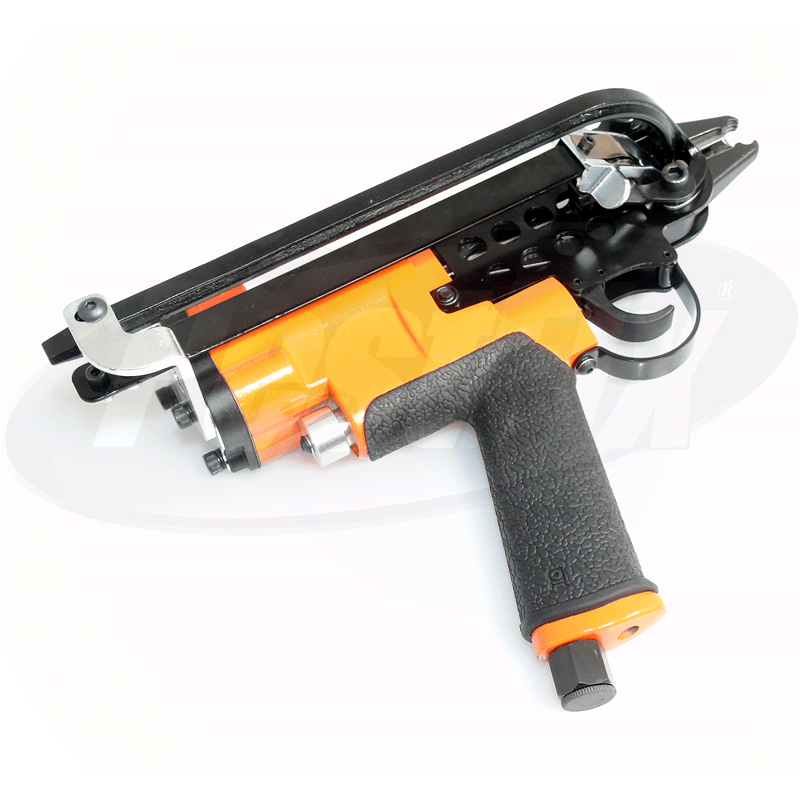

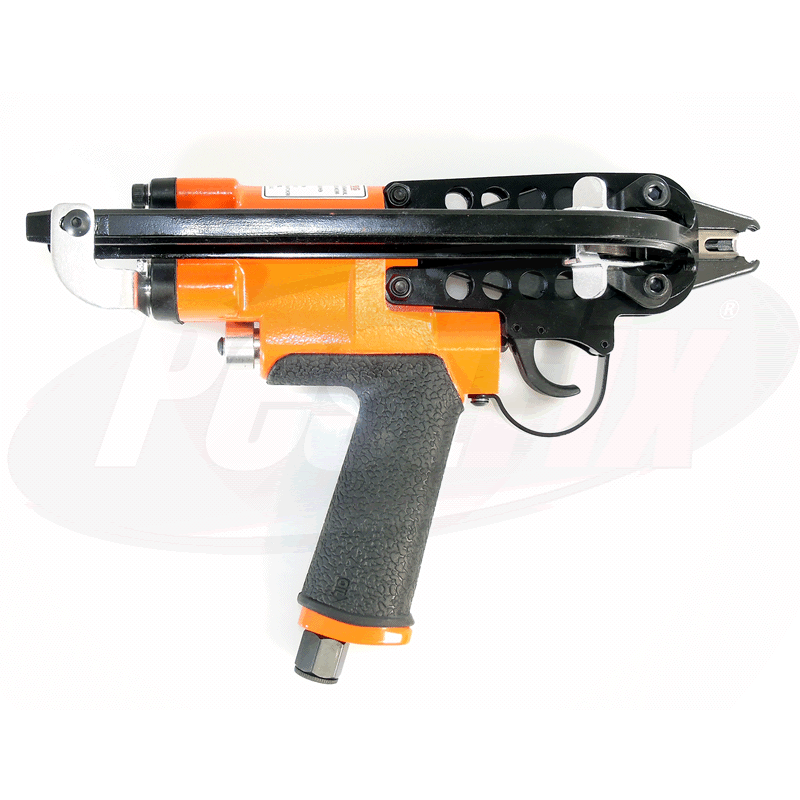

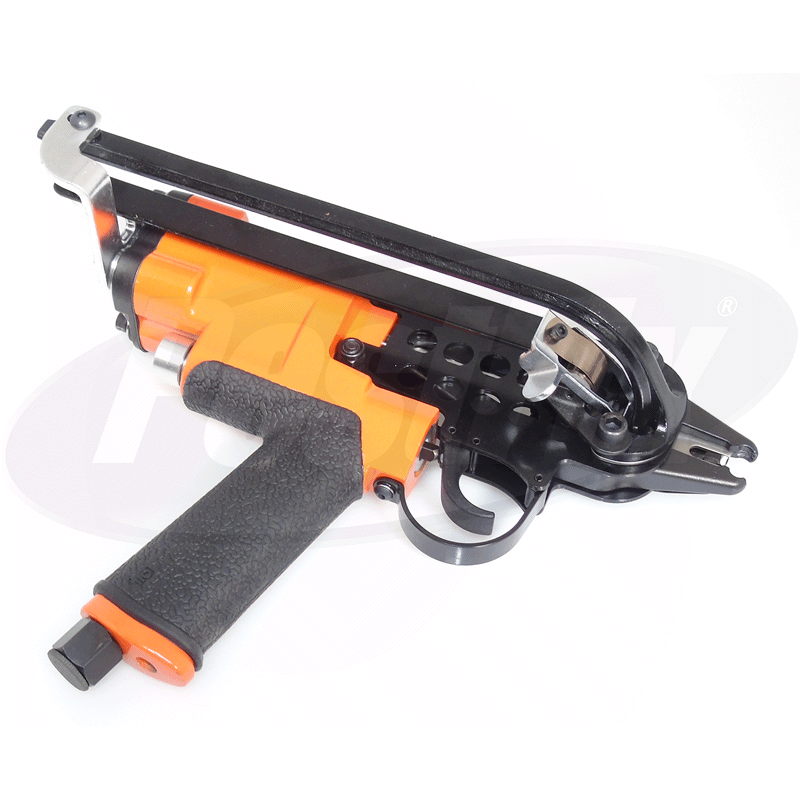

Light, Durable and Robust the Pneumatic CL12 Hog Ringer is the ideal choice for large-scale bird netting installations and welded mesh fabrication. Similar to the Spenax SC760 / 761.
- Weight 2.9 Kg
- Dimensions L x W x H (mm) 269.2 × 188 × 96.5
- Diameter (mm) 1.5 (16G) (min) - 1.5 (16G) (max)
- Open Size (mm) 12.5
- Closed Size (mm) 3.2 (min) - 5.6 (max)
- Magazine Capacity 140
- Operating Pressure PSI 85 - 115 / BAR 5.9 - 7.9
- Air Consumption (Ltr.per shot) @ 5.6 bar 3.3
Joining bird control netting to perimeter / cross wires
Installing access zips into bird control netting
Forming welded mesh enclosures, including chimney cages
Simply slide the magazine of staples on to the feeder arm of the pneumatic hog ring gun, the automated mechanism will then feed staples into the gun as required
We recommend the use of our galvanised steel staples for indoor use or sheltered outdoor use such as loading docks and warehouse canopies. We recommend the use of stainless steel staples for outdoor use and especially in coastal or marine applications.
Hog Ring Spacing
- 75mm mesh nets, 1 ring per square
- 50mm mesh nets, 1 ring every other square
- 40mm mesh nets, 1 ring every other square
- 28mm mesh nets, 1 ring every other square
- 19mm mesh nets, 1 ring every three squares
