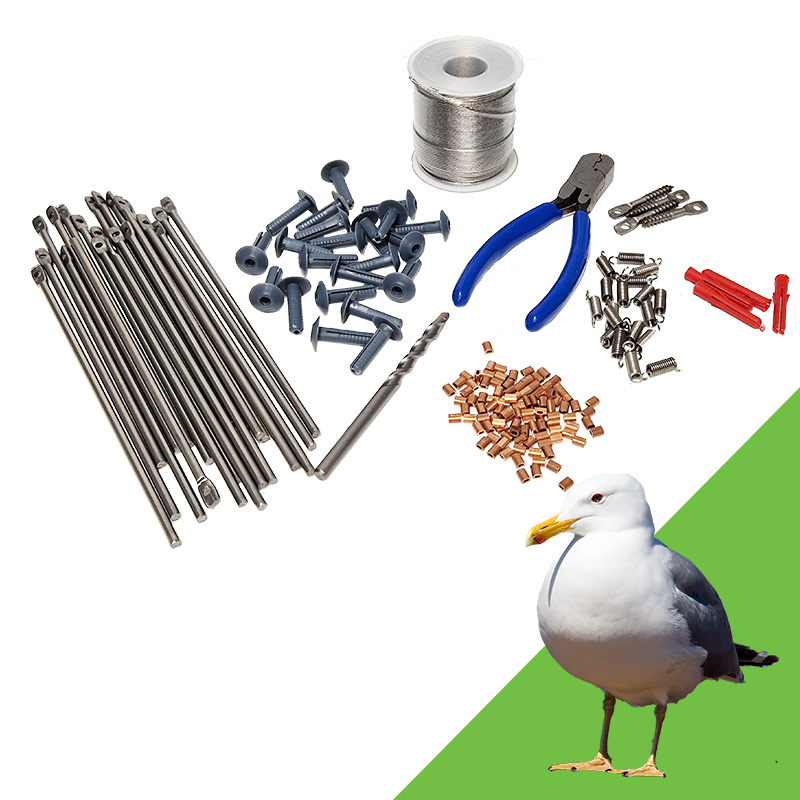

Each kit contains the following:
| |
15m Kit |
30m Kit |
60m Kit |
90m Kit |
| Gull Wire 0.96mm 1 X 7 304 Stainless Nylon Coated |
50m |
100m |
150m |
200m |
| Gull Post 180mm Single Headed For Masonry |
12 |
22 |
42 |
62 |
| Grey Masonry Rivet |
12 |
22 |
42 |
62 |
| Gull Wire Micro Spring |
10 |
20 |
40 |
60 |
| Gull Wire 1mm Copper Crimp |
100 |
100 |
100 |
200 |
| Screw Pin and Wall Plug |
4 |
4 |
4 |
4 |
| 6.5mm Masonry Drill Bit - Straight Shank |
1 |
1 |
1 |
1 |
| Bird Wire Crimp Tool |
1 |
1 |
1 |
1 |

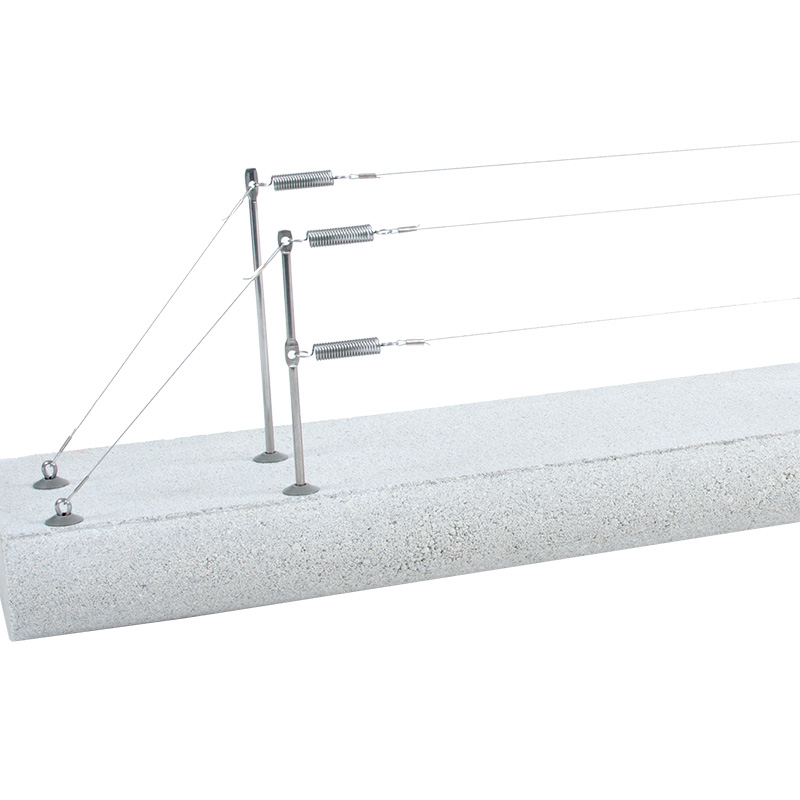

Maximum distance between gull wire posts = 3000mm (3m)
Gull wire should be spring-tensioned every 3000mm (3m) along its run, i.e. the wire should stop at a spring on each post and start with a newly crimped section of the other side of the post.
In doing so you are spreading the load evenly across the post system and avoiding spring overload
Do not thread the gull wire through the eyelets of the post and onwards to the next post, this will cause the system to sag and go out of shape.
The system should be counter-tensioned at the end of each run using the screw-pin and plugs provided. To avoid sagging of the system do not use springs in the counter-tension wires,
