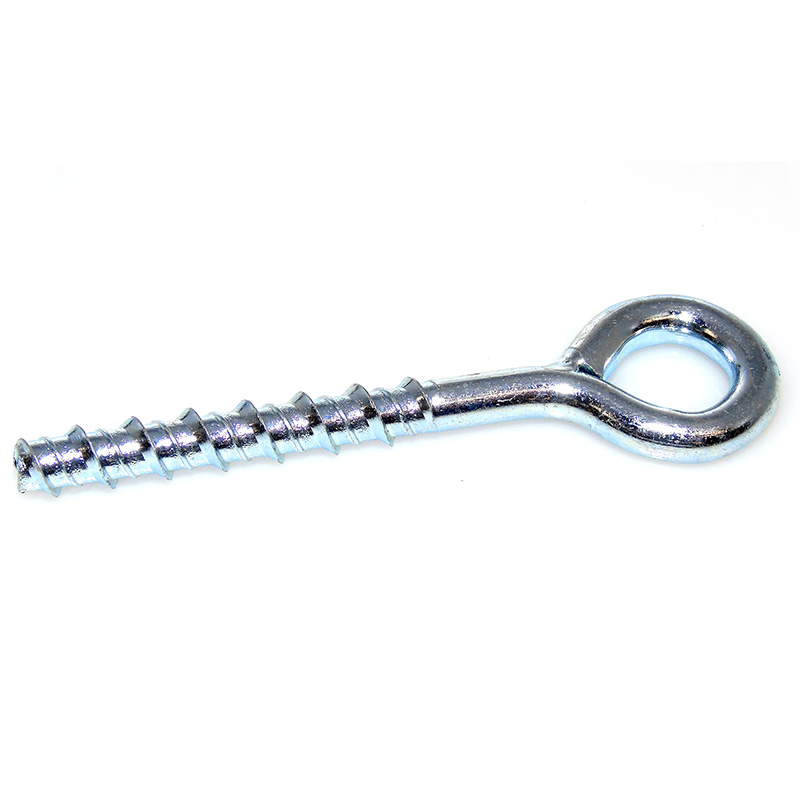

Anker Eye Bolt Masonry Intermediate Fixing BZP

• Fast fit masonry intermediate netting perimeter fixing available in 6mm or 8mm
• Self tapping masonry fixing, no anchor plug or sleeve required
• Simply drill your hole 45mm deep and wind the product home
• Mild steel bright zinc plated, forged eye makes for a high tensile strength fixing
• Suitable for concrete, bricks, dense blocks and most natural stone

A self tapping anchor eye bolt which cuts it's own thread in the base material.

Suitable for use in solid concrete, hollow concrete, bricks, dense blocks and most natural stone.

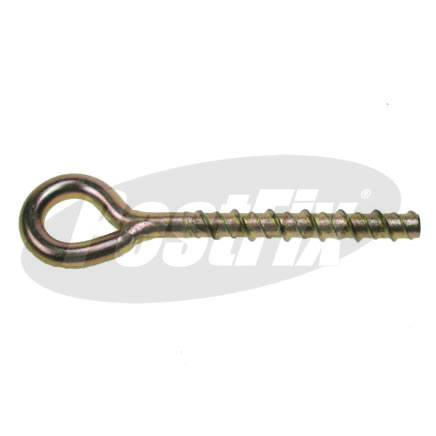

NF288 = 6mm diameter X 90mm (45mm hole depth required)

NF289 = 8mm diameter X 90mm (45mm hole depth required)

Recommended Tensile Loads:

NF288 = 1.0KN

NF289 = 1.9KN

Suitable for use as a heavy-duty masonry intermediate netting fixing in solid concrete, hollow concrete, bricks, dense blocks and most natural stone.

Ideal for use as a heavy duty intermediate masonry fixing on heavy netting installations of 28mm and 19mm nets over 100 square metres.

Can also be used as a light duty corner fixing for 75mm and 50mm netting installations of 25 square metres or less.

Spacings:

75mm and 50mm mesh nets = 1m

28mm mesh nets = 0.5m

19mm mesh nets = 0.3m

Set out the position of the fixing and mark, then drill appropriate diameter hole 45mm deep.

Brush / blow out excess dust and loose material.

Insert the Anker Eye Bolt into hole and wide clockwise applying inward pressure as you do so.
