• Beam clip intermediate netting fixing for structural steel
• Holds perimeter net wire rope to steelwork flanges, on C, H and L-section steel beams.

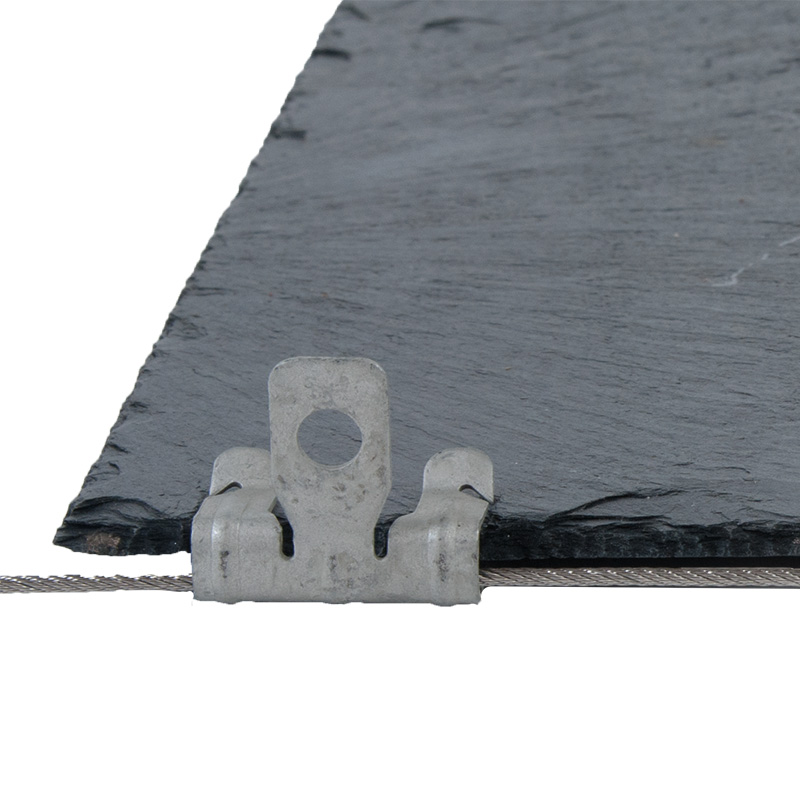

• Also suitable for securing to roof tiles as an alternative to drilling tiles, slate brackets or surface mount fixing
• To fit flange sizes 3-8mm
• Available in packs of 10, 100 and 1000
• Also available in jaw widths up to 28mm
• Ideal for netting industrial buildings, underground carparks and HVAC roof pens etc

For use as an intermediate netting perimeter wire rope fixing when installing bird control netting on structural steel beams, columns and roof trusses

Simply feed the perimeter wire rope between the clip's jaws and then hammer the clip home on to the flange.

Do not hammer the clip home completely, instead leave a gap of about 3mm between the back wall of the clip and the leading edge of the flange/roof tile, in order to allow the wire rope to slide through when it is tensioned.

Use at 1.0m intervals for 75mm and 50mm netting, 0.5m intervals for 40mm and 28mm netting and 0.3m intervals for 19mm netting.

WARNING: Once hammered home the clips are virtually impossible to remove, please ensure that you have measured correctly.
