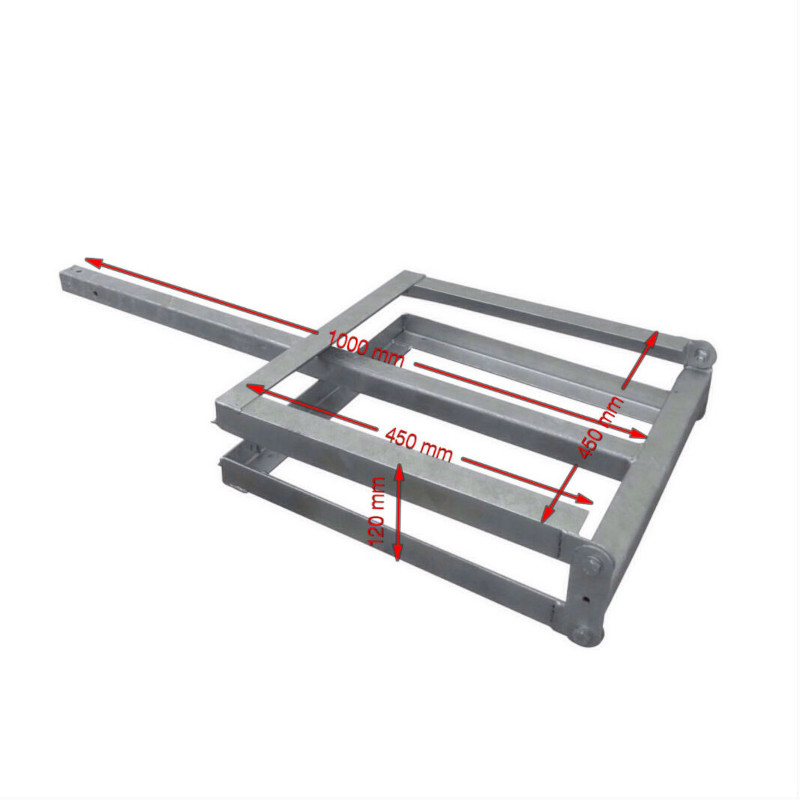

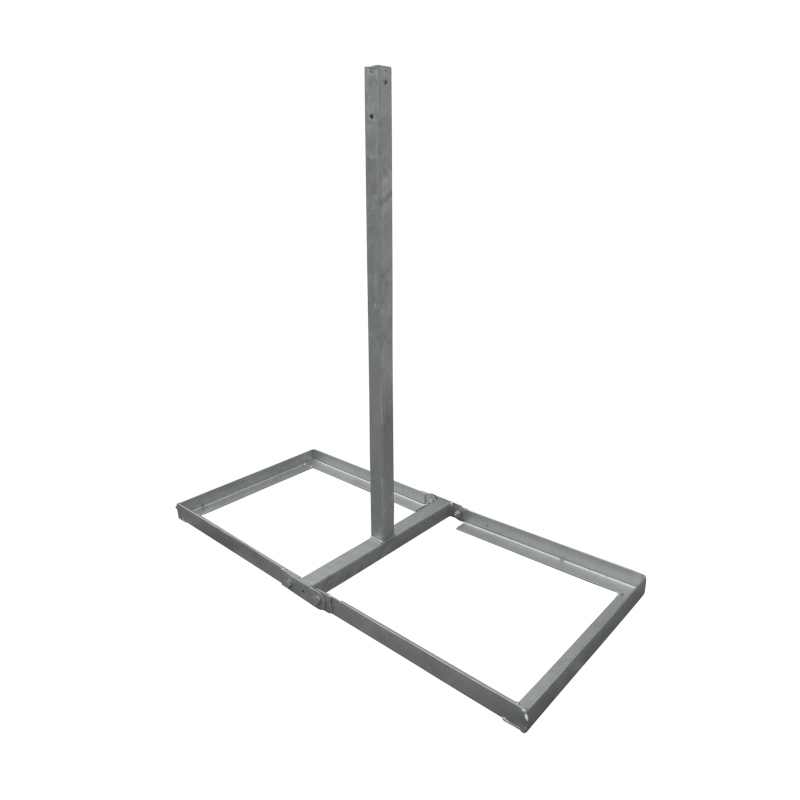

Trays with welded one metre post weighs 7kg

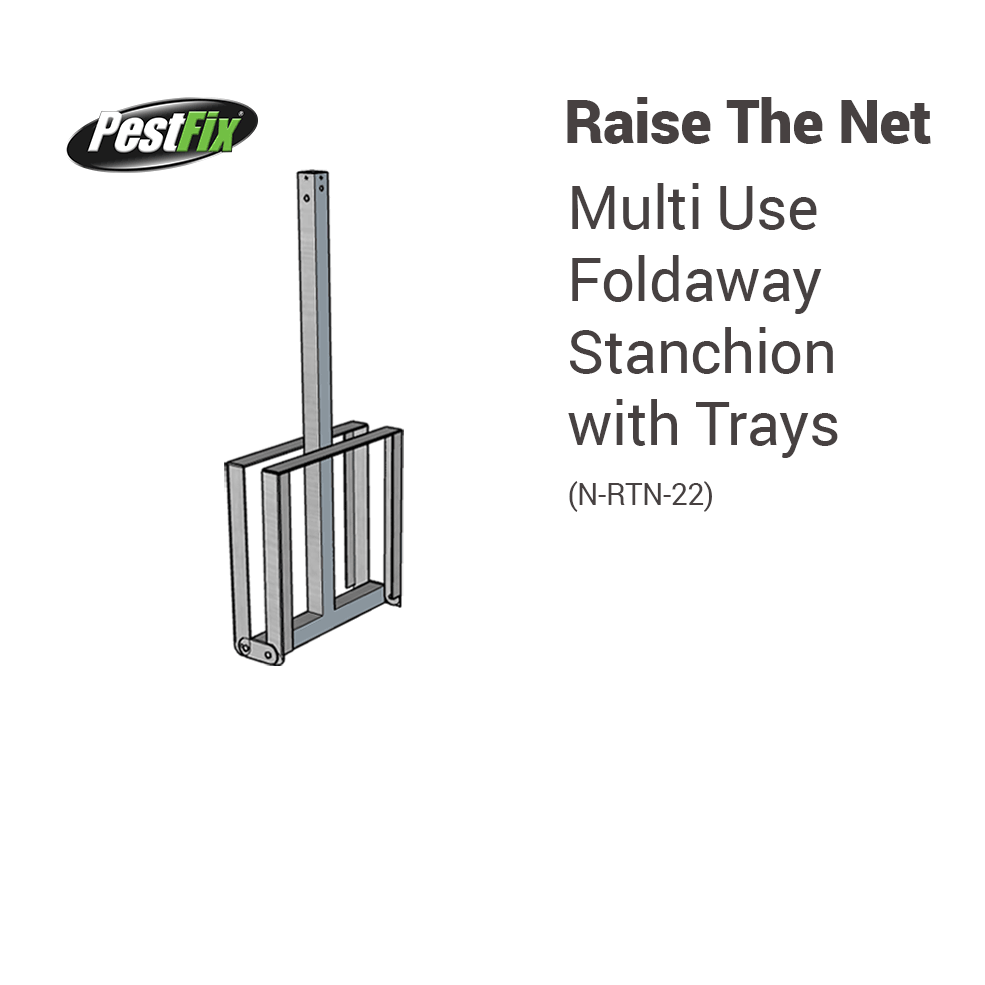

Trays fold to a height of 120mm

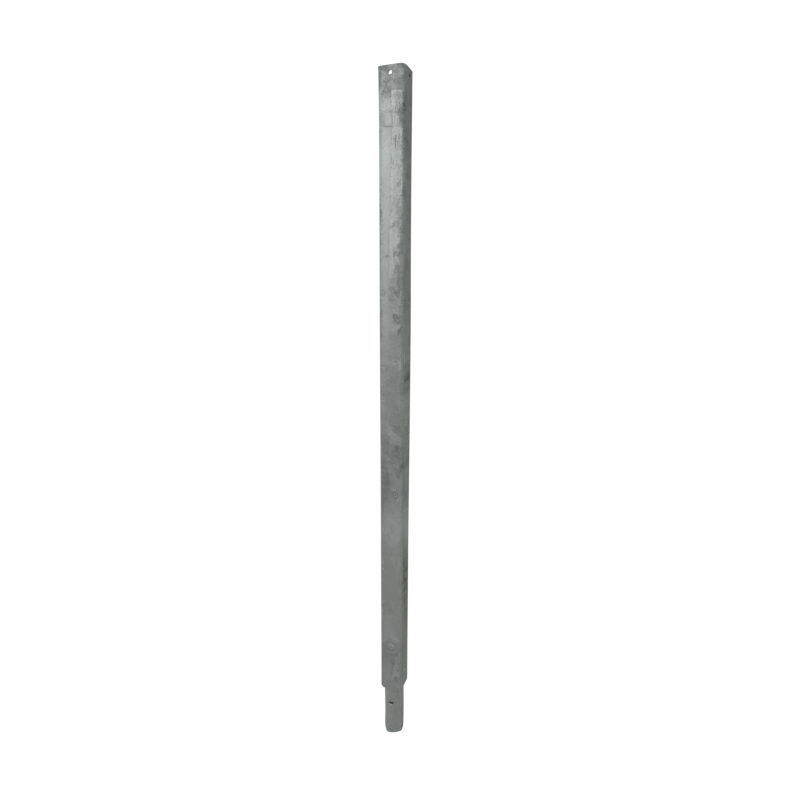

The one metre extension post weighs 2.6kg
All finished in hot-dipped galvanised steel
Each kit is supplied with the following fixings
One metre kit (N-RTN-22-1M)
Four x M10 Flanged Hex Serrated Nut Zinc
Four x M10 x 25 HT Hex Set Screw Zinc
Two metre kit (N-RTN-22-2M)
Four x M10 Flanged Hex Serrated Nut Zinc
Four x M10 x 25 HT Hex Set Screw Zinc
Four x M8 Flat Washers Form A Zinc
Two x M8 Nylon Insert Nut Zinc

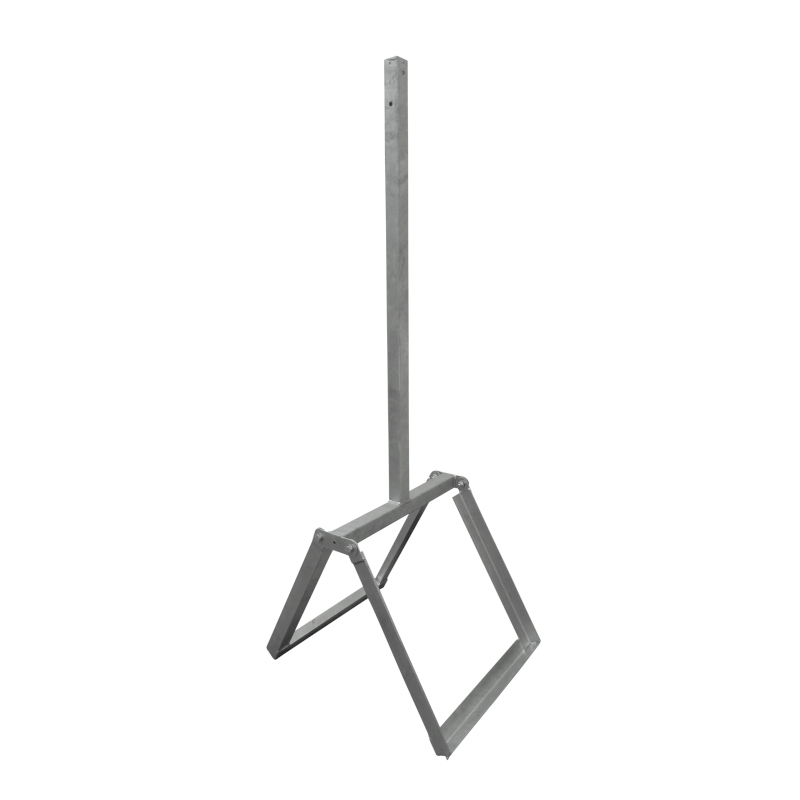

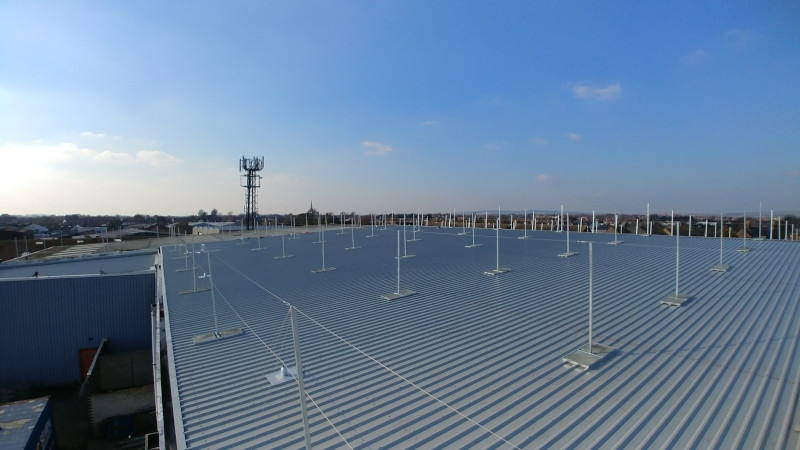

Two x M8 x 50 HT Hex Set Screw ZincThese stanchions are designed to elevate bird netting installations on roofs which may have solar panel arrays or HVAC equipment installed, and also for roofs that require general access or regular maintenance
The flexible trays can be secured into position using fixings provided to suit the surface it is being installed on. The flexibility they offer means that they can either be installed on a flat or pitched surface.
The stanchions are secured and weighted down using 450mm x 450mm paving slabs, alleviating the need to pierce a roof surface in order to secure them in position
